At Rutronik: Advanced LTE Data Card for High-Speed Data Transmission by Telit

08/01/2019 Suppliers

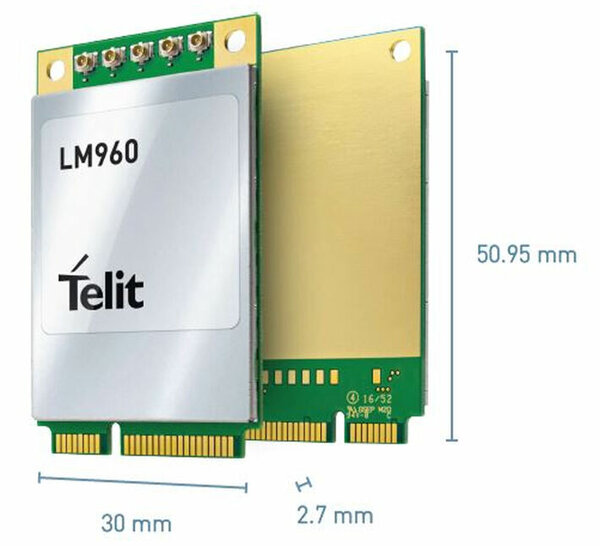

The Telit LM960A18 Mini PCIe (mPCIe) data card delivers high-speed data rates via Advanced LTE for products in network appliance environments such as routers, mobile gateways and access points. The LTE data card is available at www.rutronik24.com.

Based on LTE Cat. 18 the LM960A18 mPCIe card reaches up to 1.2Gbps download and 150Mbps upload. It supports UL (Uplink) with 2xCA (Carrier Aggregation), DL (Downlink) with up to 5xCA and the multi-antenna technology 4x4 MIMO (Multiple Input Multiple Output). Thanks to the high-speed data rates, the data card is well suited for products that demand high throughput to provide the most advanced 4G LTE connectivity.

Up to four independent firmware images are selectable at boot to support different network operator requirements. Furthermore, the LM960A18 offers 3G fallback and full GNSS support. It supports multiple RF frequency bands and band combinations to accommodate global deployments. It is available for EMEA, North America and APAC. The data card has a standard Mini PCIe (mPCIe) form factor and includes USB drivers for Windows 7, 8.x, 10 and Linux (Kernel 4.10).

You will find more information on the Telit LTE Cat module on the e-commerce platform
www.rutronik24.com (where you can also place orders directly):

<link www.rutronik24.com/search-result/nojs:1337/qs:LM960/reset:0&gt;https://www.rutronik24.com/search-result/nojs:1337/qs:LM960/reset:0</link>

Contact Person at Rutronik
Anja Schaal, Team Leader Product Marketing Wireless
Tel: +49 7231 801 1471
e-mail: <link anja.schaal@rutronik.com - mail "open internal link">anja.schaal@rutronik.com</link>
