Capacitors for toughest conditions: The C4AQ-P series from KEMET

10/17/2024 Product News

Rutronik is now offering the C4AQ-P capacitors from KEMET for use in particularly challenging environments. These are characterized above all by their extreme reliability and performance, and deliver enhanced functionality when other components are already failing. They function reliably in a temperature range of -55°C to +125°C and a voltage range of 450 VDC to 1,600 VDC. In addition, the capacitors have an excellent self-healing capability. They are AEC-Q200 qualified, THB (temperature-humidity bias) tested and are ideal for applications in the automotive industry, in renewable energy systems or in energy storage systems, for example. They are available in Bulk packaging at www.rutronik24.com.

The capacitors are tested for up to 3,000 hours under temperature-humidity bias (THB) conditions at 60 °C and 95% relative humidity (R.H.) at V_ndc. Option for testing up to 500 hours at 85 °C / 85 % RH is also available upon request. They perform reliably in the capacitance range of 4.7 nF to 8.2 nF.

Additional benefits:

Expected operating life (h) at 125 °C: 4,000 hours
Two-pole or four-pole connection cables
Cable spacing: 27.5 mm to 52.5 mm

Application examples at a glance:

Automotive industry
- Drives for electric vehicles and hybrid vehicles
- Automotive infotainment
- Safety systems
Industry
Renewable energies
Energy storage
DC-Link and DC-Filtering

For more information to the C4AQ-P series from KEMET and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik:

Marcel Fritz| Corporate Product Manager Capacitors | +49 7231 801 4614 | marcel.fritz@rutronik.com

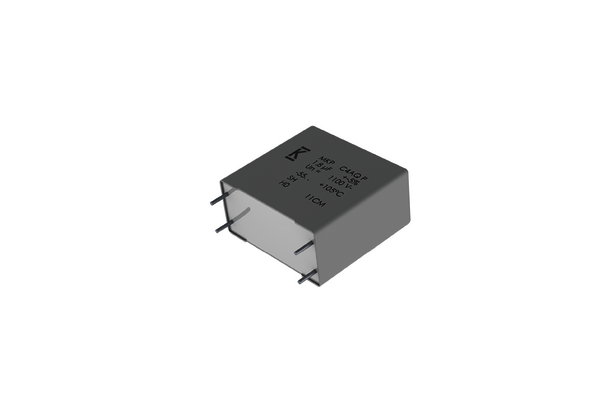

The C4AQ-P capacitor series from KEMET can withstand the toughest conditions.
