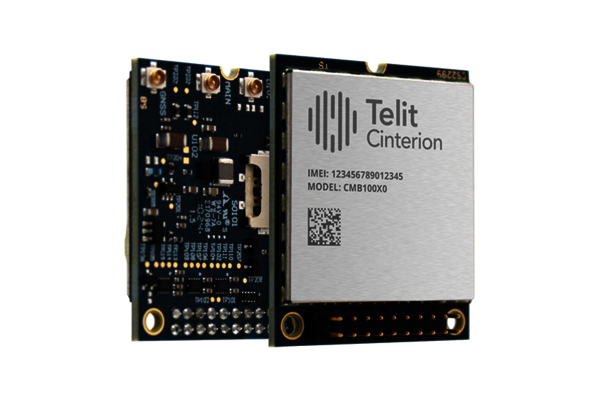

The CMB100 series features a unified design to support current and future LTE and 5G technologies from Telit Cinterion, simplifying the integration of commercial and industrial devices. In addition, the modules eliminate the complexity and challenges of radio frequency (RF) applications, which also positively impacts development times.
With the included CMB100 Rapid Development KIT 3990150771, developers get a flexible product development platform that enables rapid prototyping of unlimited IoT applications. The integrated MikroBUS™ interface allows seamless connection to over 1,500 Mikro Click Boards™ and supports a wide range of I/O, sensors, wireless modules and control technologies. Its customized yet simple baseboard design results in a lower BOM cost end product by keeping all firmware and embedded complexity on the host MCU.
The CMB100 family is currently available in the following variants:
Key features:
- Standard mini-Berg connector with 20 mm pitch
- USB 2.0, UART and individually definable GPIOs
- Wide power supply voltage range: 1.8 V to 5.5 V
- 8 V GPIO
- Integrated TCP/IP and UDP/IP stacks
- FOTA
- GPIO level translation for 3 V system
- FCC/IC and RED certified and device certified with major carriers
- 2G and 3G fallback and GNSS
- 3GPP Release 10 platform
- Operating temperature range of -30 °C to +75 °C
Application examples:
- IoT applications, such as
- Metering & Sensing
- Tracking & Monitoring
- Alarm & Surveillance Systems
- Enterprise & Broadband
- Critical & Industrial
For more information to Telit Cinterion´s CMB100 family and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
