Compact TVS with peak pulse power of 600V: Rutronik introduces four new series from Vishay Intertechnology

10/31/2024 Product News

Vishay's four new series of TRANSZORB® and PAR® transient voltage suppressor now complement the Rutronik portfolio. The series 6DFNxxA, 6DFNxxxCA, T6NxxAand T6NxxxCA are available in the particularly flat and compact DFN3820A housings with wettable flanks, which allow for optimal use of the PCB space. They are ideal for automated assembly and offer moisture sensitivity level MSL-1 according to J-STD-020, as well as an LF peak of 260 °C. The components were developed to protect sensitive devices from voltage transients. Typical applications include battery management systems, central control units or DC/DC converters. They are available to order at www.rutronik24.com.

The four new series are also available in Vishay's small and ultra-low-profile 3.8 mm x 2.0 mm x 0.88 mm DFN3820A packages. The Wettable Flanks enable automatic optical inspection (AOI), eliminating the need for X-ray inspection.

The TVS are available as industrial-grade TRANSZORB® and automotive-grade PAR® versions, whereby the PAR® components are AEC-Q101 qualified and can withstand temperatures of up to 185°C.

They tolerate peak pulse power of up to 600 W at 10 / 1,000 µs and have a low leakage current of only 1 µA. They feature matt tin plated leads that meet the requirements of the Class 2 JESD 201 whisker test and have excellent clamping ability with a maximum clamping voltage of 16.7 V to 70.1 V for the 6DFNxxA and T6NxxA series and 16.7 V to 137 V for the 6DFNxxxCA and T6NxxxCA models.

Benefits at a glance:

  • Available in a DFN3820A package with wettable flanks for AOI
  • Available as industrial-grade TRANSZORB® and automotive-grade PAR® TVS
  • RoHS compliant and halogen-free
  • 3.8 mm x 2.0 mm footprint and a typical height of 0.88 mm
  • MSL-1 according to J-STD-020
  • Matt tin plated leads pass the JESD 201 class 2 whisker test

Further application examples:

T6NxxA and T6NxxxCA: To protect sensitive electronics from voltage spikes induced by switching inductive loads and lightning strikes on integrated circuits, MOSFETs and signal lines of automotive sensor units, such as

  • Advanced Driver Assistance Systems (ADAS)
  • Battery Management Systems (BMS)
  • Electric Power Steering (EPS)
  • Infotainment Systems
  • Central Processing Units (CPU)
  • On-Board Chargers (OBC)
  • DC/DC Converters
  • Traction Inverters
  • Electric Motor Drives

6DFNxxA and 6DFNxxxCA: To protect sensitive electronics from voltage spikes caused by switching inductive loads and lightning strikes to integrated circuits (ICs), MOSFETs and signal lines of sensor units, including

  • Consumer
  • Computer
  • Industrial
  • Medical
  • Telecommunications




For more information to TVS series in DFN3820A housings from Vishay and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik:

Leonardo Sarcone | Senior Manager Product Marketing Standard Products |  +49 7231 801 1712 | leonardo.sarcone@rutronik.com

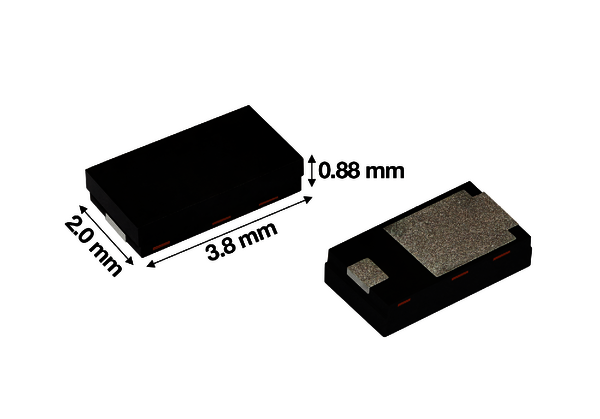

Space-saving solutions for multiple applications: Vishay's TRANSZORB and PAR transient voltage suppressors in DFN3820A package.
