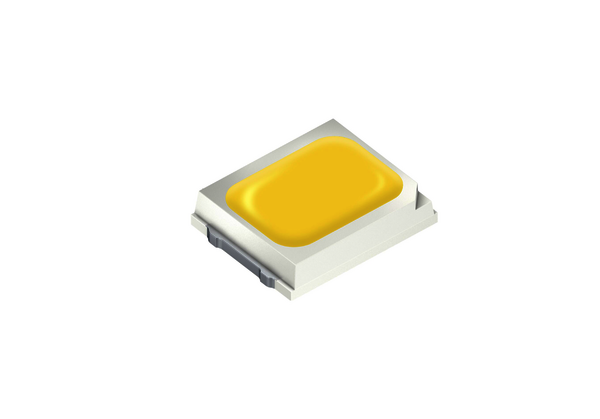

The LEDs are installed in white SMT housings. Their ESD (electrostatic discharge) is a low 2 kV according to ANSI/ESDA/JEDEC JS-001 (HBM, class 2). Test results according to IESNA LM-80 for lumen maintenance are already available.
The DURIS® E 2835 has a comprehensive reliability assessment prior to product release and covers three CRIs (GW JTLMS3.EM: CRI 80; GW JTLMS3.CM: CRI 90; GW JTLMS3.GM: CRI 97) to meet the diverse requirements of interior lighting designs. High CRIs, such as the GW JTLMS3.GM with a CRI of 97, are predestined for niche applications with high demands on the quality of color rendering. The specially matched color temperature (CCT) of 2400 K is particularly suitable for waterproof consumer applications. They deliver optimum results at an operating temperature range of -40 °C to +100 °C.
Specifications at a glance:
- GW JTLMS3.EM
- CRI: 80 (min), 81 typ.), R9: 0 (min)
- Luminous flux: Typ. 25 lm at 3,000 K
- Luminous efficacy: Typ. 132 lm / W at 3,000 K
- GW JTLMS3.CM
- CRI: 90 (min), 92 (typ.), R9: 90 (min)
- Luminous flux: Typ. 23.5 lm at 3,000 K
- Luminous efficacy: Typ. 135 lm / W at 3,000 K
- GW JTLMS3.GM
- CRI: 97 (min), 98 (typ.), R9: 50 (min)
- Luminous flux: Typ. 18.5 lm at 3,000 K
- Luminous efficacy: Typ. 105 lm / W at 3,000 K
Application examples for the DURIS® E 2835:
- Professional interior lighting
- Flexible strip lighting
- Round ceiling lights
- Architectural lighting
- Waterproof, illuminated fittings
For more information to DURIS® E2835 from ams OSRAM and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
