CW46 - Displaytech Small 1,8 TFT

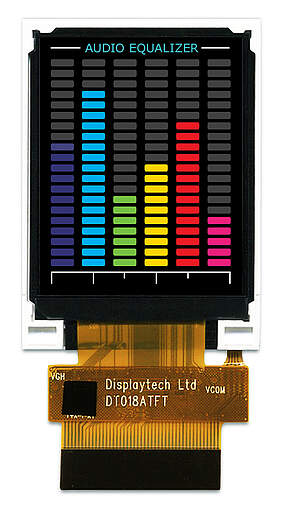

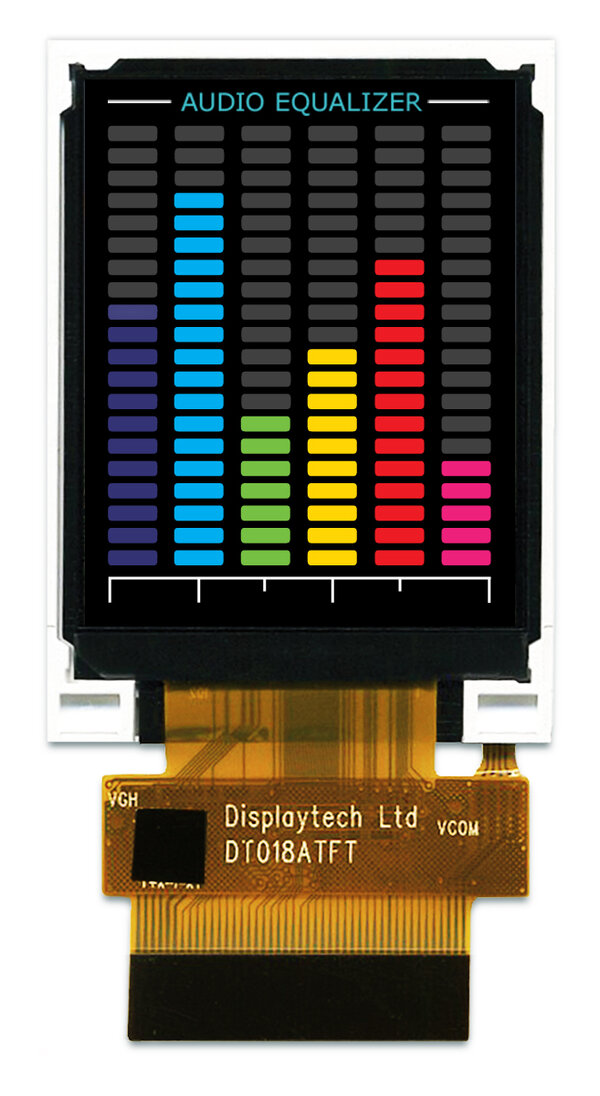

Small Displays for industrial applications are often not very long available in the market. However, a stable supply over several years is mandatory to avoid regular redesigns at customer side. This is the subject of Displaytech, who have many small displays available over several years. Including the 1,8” TFT with an active area of 28.03 x 35.04 mm and a resolution of 128 x 160 pixels. The DT018ATFT can be controlled via RGB, 3-wire SPI or via MCU parallel. With 280 cd/m² it is exceptionally high bright for a small display and can display 262k colours. It is perfect for small status display, measuring or metering devices and control units as a full colour display unit. Due to the wide temperature range of -20 to +70°C the display is ideally suited for industrial requirements.
