The arrangement of the Hall plates enables the sensors to suppress external magnetic stray fields. Only a simple two-pole magnet in an end-of-shaft configuration is required to measure the absolute angular position. The magnet can be positioned above or below the sensor. Errors due to supply voltage and temperature fluctuations can be minimized by the measuring principle of the Hall plate array.
An integrated signal path allows the non-volatile memory (EEPROM) of the HAL 302x to be programmed in order to individually adjust relevant properties such as sine and cosine signal amplification, offset, (absolute) 0-angle, orthogonality and bandwidth. Programming is carried out via the output pin of the sensor, so that no additional programming connection is required.

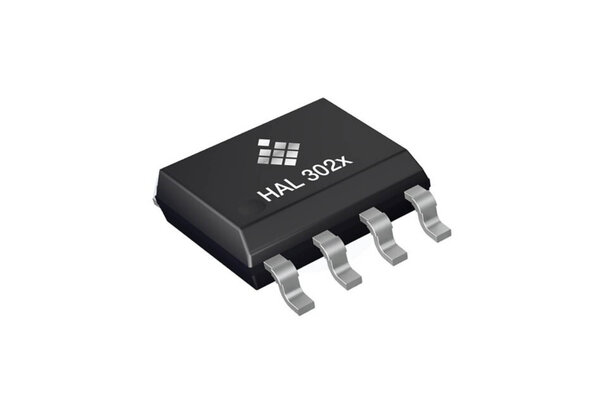

The HAL 302x includes integrated diagnostic functions, such as overvoltage and undervoltage detection as well as wire breakage monitoring in normal operation. The sensor family is suitable for both automotive and industrial applications thanks to its extensive certifications and high-temperature capability. The sensors are available in SOIC8 SMD housings.
Features at a glance:
- Non-contact, fast 360° angle measurement
- EMC-resistant analog differential or single-ended sine/cosine outputs
- Non-ratiometric or ratiometric analog outputs related to the supply voltage
- Robust against DC and AC magnetic stray fields (according to ISO 11452-8:2015)
- Safety Element out of Context (SEooC) ASIL C ready according to ISO 26262:2018
- Supply voltage range from 3.0 V to 5.5 V
- Fast response time and high output bandwidth for applications up to 150,000 rpm
- Operation from -40 °C up to 170 °C chip temperature (max. ambient temperature: TA = 150 °C)
- Overvoltage and reverse polarity protection
- Crossbar switch for signal routing (pin assignment for the output signals)
- On-chip temperature sensor for overtemperature monitoring
- AEC-Q100 qualified
Applications:
- Rotary position measurement for the commutation of BLDC motors
- Starter/generator systems
- Electric pumps & valves
