The Ethernet 800 Series continues to evolve, allowing developers to directly benefit from workload-optimized performance and flexibility to meet changing network requirements. Features such as reliability and proven interoperability with fast data transmission round off the components.
The E810-XXVDA2 impresses with
- Increased security through HW Root-of-Trust and authentication when reading the NVM, as well as when switching on.
- Improved performance and lower costs thanks to support via SFP+ and SFP28 transceivers.
- better manageability through support of PLDM headers for more flexibility in FW management

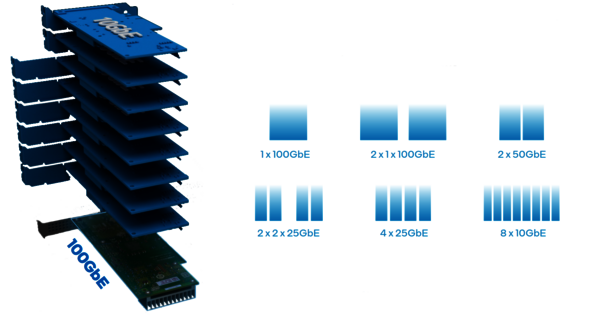

The Ethernet Port Configuration Tool (EPCT) enables flexible port and speed combinations for the 100GbE 800 Series network adapters. EPCT provides a versatile solution for high-density, port-constrained network environments - turning one port into eight 10GbE ports, four 25GbE ports and more - with up to six configurations to choose from.

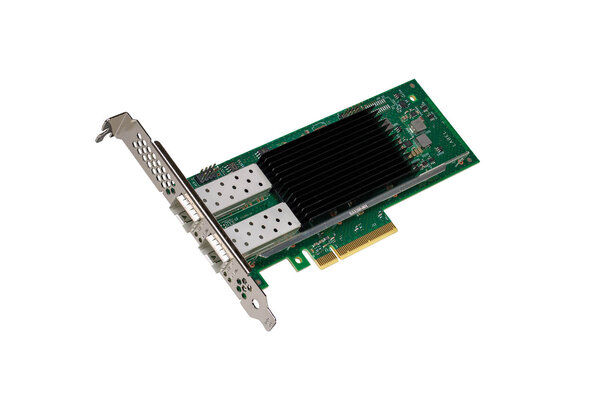

Features of the Intel® Ethernet Network Adapter E810-XXVDA2 at a glance:
- Dual Port SFP28
- PCI Express (PCIe) 4.0 x8
- Applications Device Queues (ADQ)
- Dynamic Device Personalization (DDP)
- Supports both RDMA iWARP and RoCEv2
- IEEE 1588 Precision Time Protocol (PTP)
Applications:
- Cloud workflows: Edge services, web servers, database applications, King servers and storage targets
- High bandwidth communication workloads: Mobile Core, 5G RAN
- High performance servers: NFV, storage, HPC-AI or hybrid cloud
Further information is available at rutronik-tec.com.
For more information to Intel® Ethernet 800 series and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
