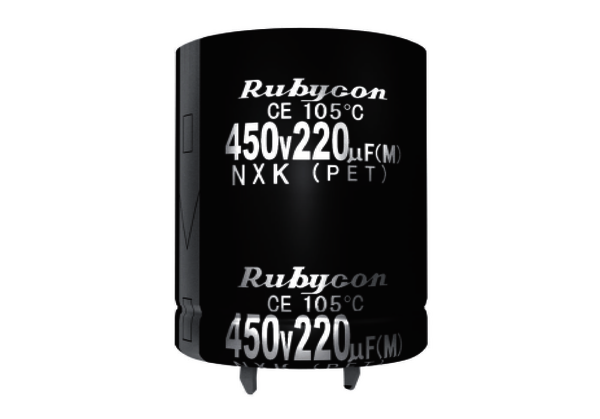

High-temperature resistance meets miniaturization: Rubycon snap-in electrolytic capacitors at Rutronik

01/12/2023 Know-How

Rubycon complements the range of extremely compact components with guaranteed high-temperature resistance and long service life. This ranges from 3,000 (MXK), 5,000 (VXK), 7,000 (GXK) and 10,000 hours (NXK) at ambient temperatures up to 105 °C. Large aluminum electrolytic capacitors are increasingly used in communications equipment such as servers and communications base stations, in renewable energy sectors such as solar power, and in the automotive industry for vehicle chargers. The new Rubycon snap-in ranges now offer the opportunity for further miniaturization and the associated optimization of the cost structures of these applications. The Rubycon Snap-In electrolytic capacitors are available at www.rutronik24.com.

The rated voltage of the ultra-miniaturized VXK, NXK and MXK (upgrade) series is between 400 and 500 VDC (for MXK additionally 16-250 VDC). For the GXK series this is between 160 and 500 VDC. In addition, the capacitors benefit from wide capacitance ranges of 68 to 1,200 μF / 330 - 82000 µF (MXK), 68 to 1,200 μF (VXK); 82 to 3,900 μF (GXK); and 120 to 820 μF (NXK), respectively.

Rubycon products are manufactured under the company's internal maxim to reduce environmentally hazardous substances and follow the EU RoHS Directive (2011/65/EU) and its amendments (2015/863/EU).

Series	Rated Voltage VDC	Capacity µF	Temperature Range °C	Service life Std.	Size
VXK	400 – 500	68 – 1.200	-25 – +105	5.000	ultra-miniaturized
NXK	400 – 500	120 - 820	-25 – +105	10.000	ultra-miniaturized
MXK Upgrade	16 – 250 400 – 500	330 – 82.000 68 – 1.200	-40 – +105 -25 – +105	3.000	ultra-miniaturized
GXK	160 – 500	82 – 3.9000	-25 – +105	7.000	miniaturized

For more information concerning the Rubycon Snap-in electrolytic capacitors and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik:
Christian Kasper | Technical Expert Capacitors | +49 7231 801 4817 | christian.kasper@rutronik.com

Durable and miniaturized for space-saving design-in.
