High Voltage FRED from PANJIT at Rutronik: Increased efficiency and reliability of power supply systems

07/27/2023 Product News

Rutronik is adding the Optima and Speedy high-voltage FRED types with 600 V and 1200 V, respectively, from PANJIT to its product range. The power diodes improve the system efficiency of an application and are used for low-frequency (Optima) or high-frequency (Speedy) applications. They feature low leakage current and improved EMI characteristics. PANJIT FREDs are ideal for rectifier or freewheeling circuits in a wide range of power applications, such as UPS systems or data centers, but also household appliances. They are available at www.rutronik24.com.

The stability of power supply systems depends, among other things, on the electrical properties of the power diodes used. It is therefore important to use the exact FRED suitable for each application, keeping in mind the target switching frequency of the planned application. Optima-type FREDs are suitable for rectifier circuits such as high-power bridge diodes and bypass diodes, optimized for lower power losses at low VF, and predestined for low switching frequency applications. Speedy-FREDs, on the other hand, are more suitable for high-frequency freewheeling switching in CCM boost PFC and Vienna PFC to achieve maximum system efficiency. They convince with low reverse recovery time (trr) and optimized Vf, as well as better trade-off performance between Vf and the reverse recovery charge (Qrr).

More Features at a glance:

  • Low leakage current
  • Soft recovery characteristic for better EMI
  • Best efficiency achievable
  • Best combination with power switches

Possible applications:

  • Power supply for servers, data centers, PCs, networks
  • Energy storage systems
  • Battery management systems
  • Industrial motors
  • Welding equipment
  • Digital TV
  • Inverters for photovoltaic systems
  • Household appliances



Selection guides for FRED (VRRM = 600 - 1200V, IF = 8 - 60A)

Part Number Package Type VRRM Max. IF VF Typ. @IF TRR IFSM IR Max. @VRRM
      V A V A nS A µA V
PSDC0860S1  TO-252AA Speedy 600 8 1,8 8 35 75 100 600
PSDC0860L1  TO-252AA Optima 600 8 1,3 8 40 85 100 600
PSDD0860S1  TO-252AA Speedy 600 8 1,8 8 35 75 100 600
PSDD0860L1  TO-252AA Optima 600 8 1,3 8 60 85 100 600
PSDB0860S1  TO-263 Speedy 600 8 1,8 8 35 75 100 600
PSDB0860L1  TO-263 Optima 600 8 1,3 8 60 85 100 600
PSDB1560S1  TO-263 Speedy 600 15 1,8 15 42 140 100 600
PSDB1560L1  TO-263 Optima 600 15 1,3 15 70 180 100 600
PSDB3060S1  TO-263 Speedy 600 30 1,8 30 45 175 250 600
PSDB3060L1  TO-263 Optima 600 30 1,3 30 75 230 250 600
PSDF0860S1  ITO-220AC Speedy 600 8 1,8 8 35 75 100 600
PSDF0860L1  ITO-220AC Optima 600 8 1,3 8 60 85 100 600
PSDF1560S1  ITO-220AC Speedy 600 15 1,8 15 42 140 100 600
PSDF1560L1  ITO-220AC Optima 600 15 1,3 15 70 180 100 600
PSDF3060S1  ITO-220AC Speedy 600 30 1,8 30 45 175 250 600
PSDF3060L1  ITO-220AC Optima 600 30 1,3 30 75 230 250 600
PSDH3060CCS1  TO-247AD-3LD Speedy 600 30 1,8 15 42 140 100 600
PSDH3060CCL1  TO-247AD-3LD Optima 600 30 1,3 15 70 180 100 600
PSDH6060CCS1  TO-247AD-3LD Speedy 600 60 1,8 30 45 175 250 600
PSDH6060CCL1  TO-247AD-3LD Optima 600 60 1,3 30 75 230 250 600
PSDP0860S1  TO-220AC Speedy 600 8 1,8 8 35 85 100 600
PSDP0860L1  TO-220AC Optima 600 8 1,3 8 60 95 100 600
PSDP1560S1  TO-220AC Speedy 600 15 1,8 15 42 140 100 600
PSDP1560L1  TO-220AC Optima 600 15 1,3 15 70 180 100 600
PSDP3060S1  TO-220AC Speedy 600 30 1,8 30 45 175 250 600
PSDP3060L1  TO-220AC Optima 600 30 1,3 30 75 230 250 600
PSDH3060S1  TO-247AD-2LD Speedy 600 30 1,8 30 45 250 250 600
PSDH3060L1  TO-247AD-2LD Optima 600 30 1,3 30 75 270 250 600
PSDH6060S1  TO-247AD-2LD Speedy 600 60 1,65 60 55 400 250 600
PSDH6060L1  TO-247AD-2LD Optima 600 60 1,25 60 135 430 250 600
PSDH30100S1  TO-247AD-2LD Speedy 1000 30 2,65 30 95 200 250 1000
PSDH60120S1  TO-247AD-2LD Speedy 1200 60 2,7 60 170 300 250 1200
PSDH60120L1  TO-247AD-2LD Optima 1200 60 2 60 220 330 250 1200
PSDP08120S1  TO-220AC Speedy 1200 8 3 8 45 40 100 1200
PSDP08120L1  TO-220AC Optima 1200 8 2,1 8 70 40 100 1200
PSDP15120S1  TO-220AC Speedy 1200 15 3 15 70 100 100 1200
PSDP15120L1  TO-220AC Optima 1200 15 2,1 15 105 100 100 1200
PSDP30120S1  TO-220AC Speedy 1200 30 3 30 135 130 250 1200
PSDP30120L1  TO-220AC Optima 1200 30 2,1 30 160 160 250 1200
PSDH30120S1  TO-247AD-2LD Speedy 1200 30 3 30 135 190 250 1200
PSDH30120L1  TO-247AD-2LD Optima 1200 30 2,1 30 160 220 250 1200



For more information to the High Voltage FRED by PANJIT and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik:
Thomas Bolz  |  Corporate Product Manager Standard Products  |  +49 7231 801 1435  |  thomas.bolz@rutronik.com

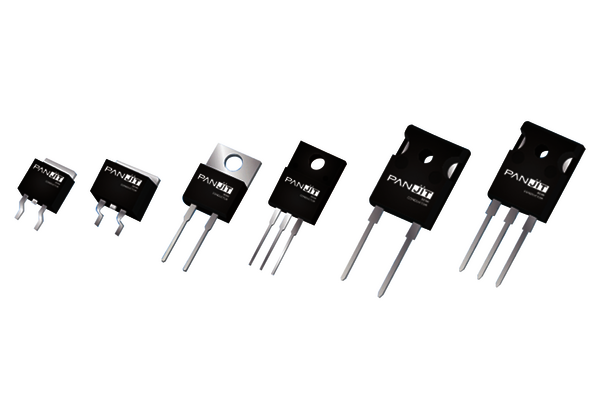

The best FRED for each application.
