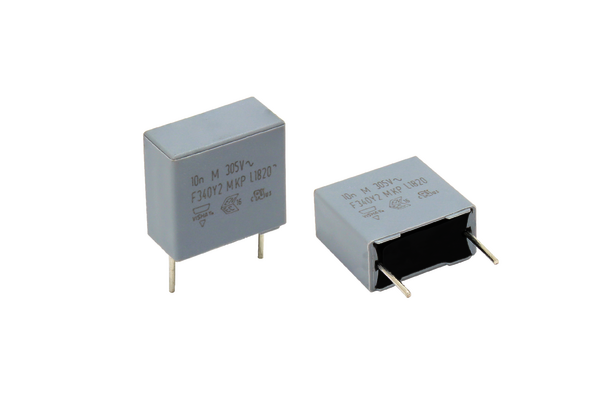

The F340 Y2 film capacitor series is designed for a rated voltage of 305 VAC and provides a capacitance range from 0.01 µF to 1 µF. Furthermore, the capacitors can be used with DC voltages up to 1,500 VDC at +85 °C and 1,000 VDC at +105 °C. The film capacitors use polypropylene film as a dielectric and are installed in a flame-retardant plastic housing sealed with epoxy resin and tested in accordance with UL class 94 V-0.
They are RoHS-compliant, lead-free and are predestined for applications under particularly harsh conditions, such as in automotive BEV/PHEV applications (OBC, e-Compressors, Heating Systems, Traction Inverter) or renewable energy inverters, industrial motor drives, UPS systems, or other standard line bypass Y2 applications.
Benefits at a glance:
- 305 VAC rated voltage
- Capacitance range from 10 nF to 1 µF
- Very high robustness under humidity, withstanding 85 °C / 85° R.H. / 1.000 h at URAC
- THB Grade IIIB acc. IEC 60384-14: 2013 ed.4 / AMD1: 2016
- Operating temperatures up to +125 °C (limited time)
- Rated DC voltage up to 1,500 VDC at +85 °C and 1,000 VDC at +105 °C
- Epoxy-sealed, flame-retardant plastic housing tested according to UL class 94 V-0
- Lead pitches of 15 mm, 22.5 mm, 27.5 mm, and 37.5 mm
Application examples:
- Automotive industry
- OBC
- HVAC e-Compressors / Heating Systems
- Traction Inverter
- Industry
- Inverters for renewable energies
- UPS systems
- Industrial motor drives
For more information to the F340Y2 film capacitors and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
