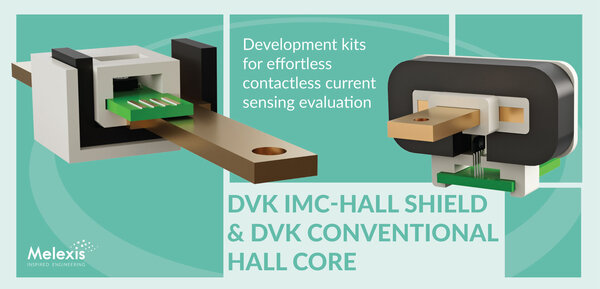

The DeVelopment Kit (DVK) DVK-IMC-Hall-Shield (rev1) contains a ready-to-use evaluations boards provided with MLX91216LDC-CAV-001 and MLX91218LDC-ARX-300 for a quick start. Also an MLX91208/91216 evaluation board with no IC to be customized with the reference you need and last but not least an MLX91218 evaluation board with no IC to be customized with the reference you need. The whole kit is rounded off with spare sensors, SiFe ferromagnetic shields, Copper bars and plastic holders in order to easily assemble all the configurations possible.
The DeVelopment Kit (DVK) DVK-Conventional-Hall (rev1) contains a ready-to-use evaluations boards provided with MLX91209LVA-CAR-000, MLX91211LUA-ABT-500 and MLX91219LVA-AAR-502 for a quick start. One evaluation boards with no IC to be customized with the reference you need. The whole kit is rounded off with spare sensors, SiFe ferromagnetic shields, Copper bars and plastic holders in order to easily assemble all the configurations possible.
Key Features:
- Plug and play DVK (all included from copper bar to sensor)
- DVK provided with an extra PCB to connect any other variant
- Build and test different configurations (shields, sensors, sensitivity)
- Ground Layer and Decoupling capacitors for high EMC performances
- Programmable: high speed current sensor and linear transfer characteristic
- IMC: Measurement range with smallest shield up to 700 A and
- with biggest shield up to 1400 A
- Conventional Hall Core: Measurement range, smallest shield up to 500 A /biggest shield up to 1200 A
- SOIC8 package RoHS compliant
- Wideband from DC to 400kHz
- Short response time
