CW42 - Diodes 74LVC2G08

10/17/2022 Product News

74LVC2G08 is a dual, two input AND gate. The DFN1210 is the one of the world’s smallest 8 pin packages.

Your Product Can Now Be Smaller, Lighter, and Thinner.
Today’s leading products are small and thin.

The DFN1210 is the one of the world’s smallest 8 pin packages. (1mm x 2 mm)



The 74LVC2G08 is a dual, two input AND gate. Both gates have
push-pull outputs designed for operation over a power supply range
of 1.65V to 5.5V. The device is fully specified for partial power down
applications using IOFF. The IOFF circuitry disables the output,
preventing damaging current backflow when the device is powered
down. Each gate performs the positive Boolean function:

Boolean function:

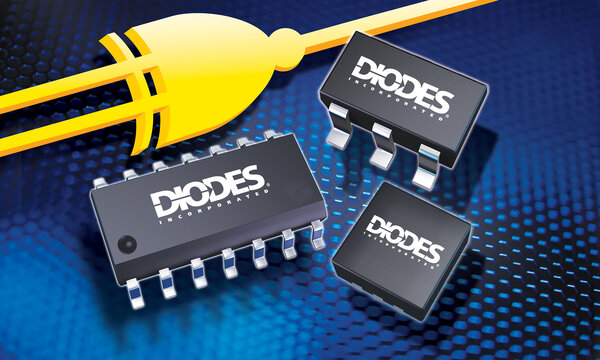

General Logic
General Logic
Boolean Function

Logic Diagram:

Logic Diagram

Function Table:

Function Table:

Features:

  • Wide Supply Voltage Range from 1.65 to 5.5V
  • ± 24mA Output Drive at 3.3V
  • CMOS low power consumption
  • IOFF Supports Partial-Power-Down Mode Operation
  • Inputs accept up to 5.5V
  • Schmitt Trigger Action at all inputs makes the circuit tolerantfor slower input rise and fall times. The hysteresis is typically 100mV at VCC = 3.0V.
  • ESD Protection Exceeds JESD 22
  • 2000-V Human Body Model (A114)
  • Exceeds 1000-V Charged Device Model (C101)
  • Latch-Up Exceeds 100mA per JESD 78, Class I
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device



Applications:

  • Voltage Level Shifting
  • General Purpose Logic
  • Power Down Signal Isolation
  • Wide Array of Products Such as:
  • PCs, Networking, Notebooks, Netbooks, PDAs
  • Tablet Computers, E-readers
  • Computer Peripherals, Hard Drives, CD/DVD ROMs
  • TVs, DVDs, DVRs, Set Top Boxes
  • Cell Phones, Personal Navigation / GPS
  • MP3 Players, Cameras, Video Recorders
