Next Level Connectivity: Dual-Core Bluetooth 5.2 Module ISP2053 from Insight SiP at Rutronik

06/07/2023 Product News

The ISP2053 Dual-Core Bluetooth 5.2 module from Insight SiP complements the Rutronik Wireless portfolio. Measuring just 8 mm x 8 mm x 1 mm, the particularly small LGA module builds on the nRF5340 chip from Nordic Semiconductor and features powerful dual-core Cortex™-M33 CPUs, as well as flash and RAM memory. Combined with, among other things, an enhanced antenna, RF matching circuit as well as 32 MHz and 32.768 kHz crystals, the module is the ideal solution for medical, industrial, or other complex IoT applications. The ISP series supports several protocols such as Bluetooth LE, Bluetooth Mesh, Thread, ZigBee ANT, NFC and is available at www.rutronik24.com.

Despite its small form factor, the module also has integrated decoupling capacitors, load capacitors, and DC-DC converters. A variety of digital and analog IOs, system peripherals, high-speed SPI, QSPI, USB, and reliable functionality at an operating temperature of -40 °C up to 105 °C complete the product.

Combined with the long-range at a high data throughput of 2 Mb / s, it allows maximum flexibility in sensor integration and audio as well as advanced IoT applications. With the ISP2053, Insight SiP currently offers the most advanced fully certified 2.4 GHz LE module series on the market.

Tools for short development times

In addition, development tools specially tailored to the ISP2053 are available, with complete hardware solutions for prototyping, testing, and programming. For this purpose, Insight SiP offers dedicated test boards with complete hardware and software environment, which also include test points for IOs as a stand-alone solution and can be combined with Nordic Development Kits as well as external J-Link programs.

The ISP2053 software platform is compatible with Nordic Semiconductor's nRF Connect SDK. That provides a complete solution integrating the Zephyr RTOS, protocol stacks, application examples, and hardware drivers.

The evaluation board ISP2053-AX-EB is suitable for first tests and prototyping around the ISP2053 module. It contains an interface board with an integrated J-Link OB JTAG/SWD emulator, the test board (ISP2053-AX-TB), and connection cables.

Key features:

  • Low Energy Transceiver from Nordic Semiconductor nRF53.
  • Supports Bluetooth Low Energy Central, Peripheral, Observer, and Broadcaster Roles, mesh protocols such as Bluetooth Mesh, Thread, and Zigbee, which can operate simultaneously with Bluetooth LE
  • NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols Bluetooth 5.2 LE Audio
  • 1.7 V to 5.5 V

Target applications:

  • LE Audio
  • Professional lighting
  • Advanced wearables
  • Smart Home
  • Asset tracking and RTLS
  • Industrial, medical, and other complex IoT applications




For more information about the ISP2053 from Insight SiP and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik
Julian Clauß  |  Corporate Product Sales Manager Wireless  |  +49 7231 801 1796  |  julian.clauss@rutronik.com

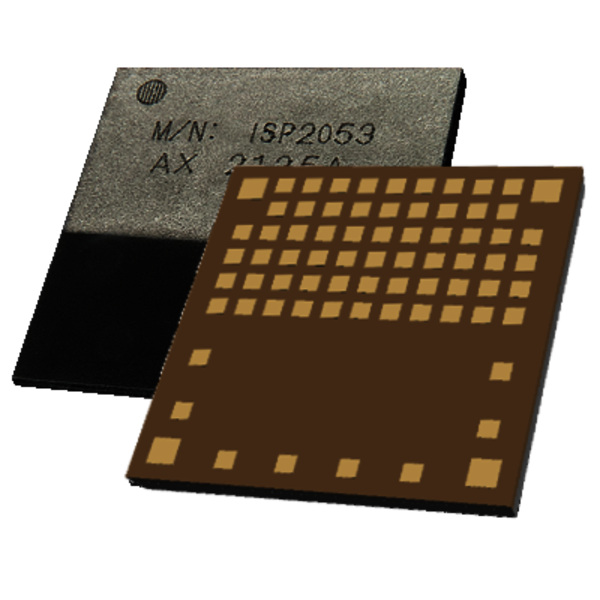

The ISP2053 Dual-Core Bluetooth 5.2 module from Insight SiP is the perfect solution for high-end Bluetooth connectivity.
