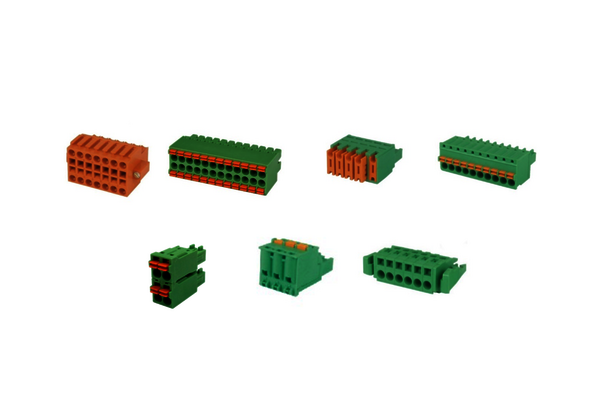

The Amphenol IPG Anytek connectors have a thermoplastic housing and are designed for contacts of size 16 - 24 AWG (American Wire Gauge) - with a conductor resistance between 14.7 Ω (for a cable diameter of 16 mm2) and 89.2 Ω (for a cable diameter of 24 mm2). Compatible with PCB sockets, the terminal blocks offer a wide range of wiring options. Amphenol can also provide a socket with tenon fixed for matching on request.
In addition, the robust and particularly heat-resistant connectors can withstand rated voltages between 150 V and 300 V and are available with 2 to 24 poles.
Features at a glance:
- 16 - 24 AWG
- Max. Rated current from 5.5 A to 12 A
- Rated voltage from 150 V to 300 V
- Product pitch from 2.54 to 5.08
Examples of possible applications:
- Automotive industry, like charging wall boxes for electric vehicles
- Industry, like control cabinets
- Alternative energies, like photovoltaic systems or wind power generation
For more information to the terminal blocks from Amphenol's IPG Anytek series and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
