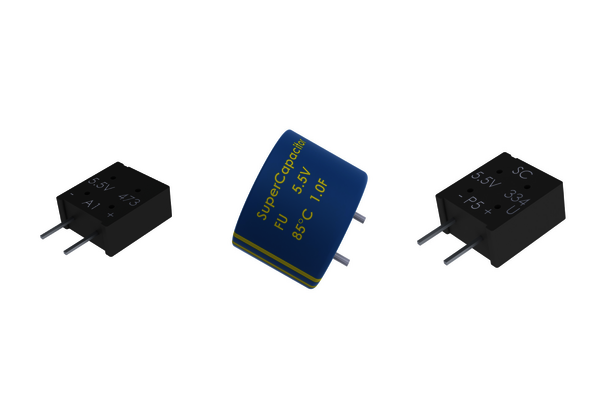

The new automotive grade Supercapacitors from KEMET ensure uninterrupted functionality, even if the main battery is replaced, there is a power failure or system error. A further contribution to reliable performance is made by the robust design, which makes the components particularly resistant to shocks and vibrations.
Key features at a glance:
FMD0H334ZF:
- Capacitance: 330 mF
- Temperature range from -40 °C to +85 °C
- Fulfills THB test (85 °C / 85 % r. H./ 1,000 h)
- 1,000 hours service life at max. 85 °C / 5.5 V
- Size: 15 mm x 14 mm x 9 mm
FU0H105ZF:
- Capacitance: 1,0 F
- Temperature range from -40 °C to +85 °C
- Fulfills THB test (85 °C / 85 % r. H./ 1,000 h)
- 4,000 hours service life at max. 85 °C / 5.5 V
- Size: Ø 21.5 mm, height 15 mm
FMU0H334ZF:
- Capacitance: 330 mF
- Temperature range from -40 °C to +105 °C
- Fulfills THB test (85 °C / 85 % r. H. / 1,000h)
- 1,000 hours service life at max. 105 °C / 5.5 V
- Size: 15 mm x 14 mm x 9 mm
Possible applications:
- ADAS
- RTC Backup
- Memory Backup
For more information to the automotive grade Supercapacitors from KEMET and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com
