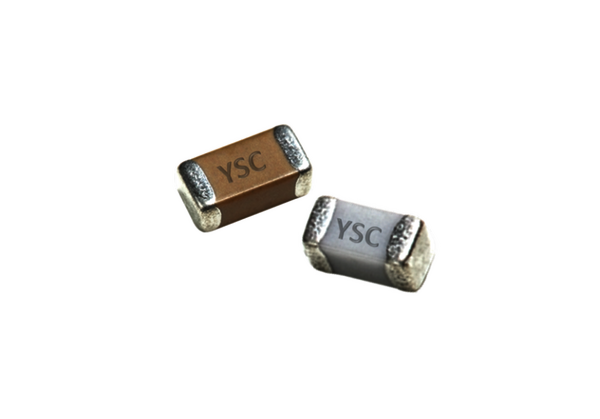

The capacitor consists of a rectangular block of ceramic dielectric containing a series of nested metal electrodes. This structure results in a high capacitance per unit volume. The inner electrodes are connected to the two end terminals and finally covered with a layer of plated tin (NiSn). The terminals are lead-free. The components are available in three different package sizes with a wide range of possible variations:
- 1808 (4.5 mm +0.6/0.9 mm / -0.3 mm (L) x 2.0 mm ±0.3/0.4 mm (W) x 1.25/1.6/2.0 mm ±0.2 mm (T))
- 2211 (5.7 mm ±0.4/0.5 mm (L) x 2.8 mm ±0.3/0.4 mm (W) x 1.6/2.0/2.5/2.8 mm ±0.2/0.3 mm (T))
- 2220 (5.7 mm ±0.4/0.5 mm (L) x 5.0 mm ±0.4 mm (B) x 2.0/2.5/2.8 mm ±0.2/0.3 mm (T))
Further benefits at a glance:
- Capacitance range from 10 pF to 56 nF
- Surface mountable (SMD)
- NP0/X7R, X1/Y2 & X2
- RoHS compliant
- Halogen free

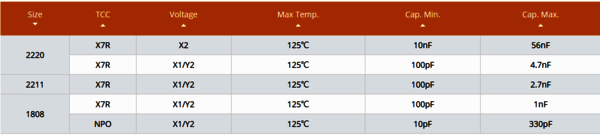

(Overview of properties see on the right)
Application examples:
- PCs, notebooks
- Networks
- Power supply
General tasks:
- General use at power inputs
- Filtering of electromagnetic interference (EMI)
- Protection of equipment from damage caused by power surges, lightning, etc.
- Protection of machine users from electric shock
- Ensuring high resistance to mechanical and thermal stress (ST series)
For more information to the SC / ST series capacitors by YAGEO and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
