Redefining the standard for reliability and efficiency: The new Ultra-Low VF Bridge GBJ and GBU series from Panjit

05/29/2024 Product News

Rutronik is adding the new ultra-low VF bridge rectifier series GBJ and GBU from Panjit to its product range. The components were developed using oxide planar chip junction technology and equipped with PI protection layers, which raises the performance as well as reliability of the series to a new level. They impress with a particularly low forward voltage of 0.74 V and an actual leakage current of just 20 µA at 125 °C in each case. The bridge rectifiers also benefit from the enormous process stability in wafer manufacturing, creating high-quality components for a wide range of power applications, e.g. in servers, telecommunications, gaming, and other high-performance applications. In terms of the environment, the series comply with EU RoHS 2.0 standards and are halogen-free in accordance with the IEC 61249 standard, which minimizes their environmental footprint. They are now available at www.rutronik24.com.

The ultra-low VF bridge rectifiers are characterized above all by their high performance and long service life. With the industry's lowest forward voltage of 0.74 V at 125 °C, the components enable optimized use of the supplied power while simultaneously increasing energy efficiency. With an actual leakage current of just 20 µA at 125°C, this bridge rectifier series guarantees efficient power transfer and improves system reliability as well as stability even under particularly demanding conditions.

The maximum junction temperature is 175°C. This increases the efficiency of high-power applications, for example, while at the same time improving heat dissipation capacity.

Benefits at a glance:

Oxide planar chip junction technology
Low forward voltage: 0.74 V @ 125 °C
Low leakage current: 20 µA @ 125 °C
Lead-free according to EU RoHS 2.0.
Halogen free according to IEC 61249 standard

Application examples:

Server
Telecommunications
AI
Gaming
80+ Platinum / Titanium PC

Overview of ultra-low LVF bridge rectifiers of the GBJ- and GBU-series:

Part Number	Package	I_F	V_RRMMax.	I_FSM	V_FTyp. @125 °C	T_J Max.	I_R Max.
Part Number	Package	A	V	A	V	°C	µA
GBJ1506ULV	GBJ-2	15	600	220	0.75	150	1
GBJ2506ULV	GBJ-2	25	600	350	0.75	150	1
GBJ3506ULV	GBJ-2	35	600	400	0.75	150	1
GBU1506ULV	GBU-2	15	600	220	0.75	150	1
GBU2506ULV	GBU-2	25	600	350	0.75	150	1
GBU2506HULV	GBU-2	25	600	380	0.74	175	1

For more information to Panjit´s new bridge rectifiers and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Contact Rutronik:

Thomas Bolz | Corporate Product Manager Standard Products | +49 7231 801 1435 | thomas.bolz@rutronik.com

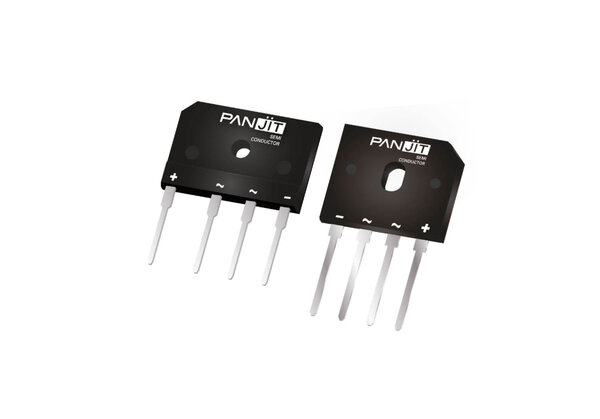

Panjit's new rectifiers: Optimised in efficiency and reliability for superior performance and more sustainability.
