The power supplies are certified according to overvoltage category OVC III and deliver a full 20 W output power without airflow up to +55 °C (85 °C with derating). With efficiencies of up to 88%, the power supply ensures cool operation and a high MTBF of over 1 million hours. They provide fully regulated DC outputs of 5, 12, 24 or 36 VDC, with an additional 24VDC version featuring active current limitations.
The components come with a clip for tool-free mounting by simply snapping it onto a solid DIN rail and are cost-effective and robust. Thanks to the small form factor of just 83 mm x 26.4 mm x 29.5 mm, they can also be used in flush-mounted boxes, for example. Due to their slim design, they also remain hidden behind the front panel.

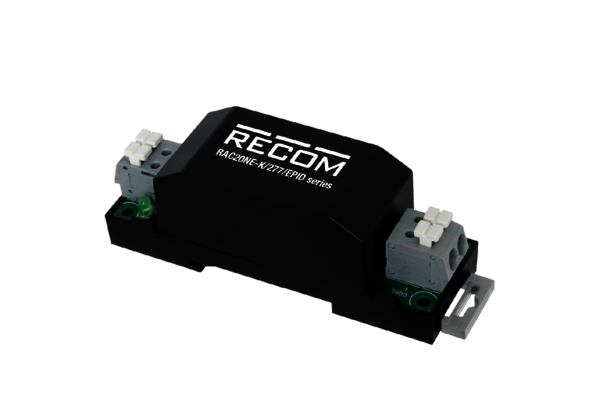

The RAC20NE-K/277/EPID power supply series consists of the following variants:
- RAC20NE-05SK//EPID
- RAC20NE-12SK/277/EPID
- RAC20NE-24SK/277/EPID
- RAC20NE-36SK/277/EPID
- RAC20NE-24SK/277/CC/EPID
Main features at a glance:
- Input Voltage range from 85 VAC up to 305 VAC
- 23 W boost power
- Overvoltage resistance 2 kVAC: L – N, as well as 4 kV: L, N - ground
- OVC III overvoltage category up to 3000 m
- EN55032 “B”: O/P either floating or earth referenced
- Tool-free mounting with a clip to “snap” onto a solid DIN rail
- DIN rail or screw mounting
- Fully IP40 encapsulated
- Available in five variants
Further application examples:
- Automation
- Future Mobility (not automotive)
- Biotechnology
- IIot & Internet of everything
- Energy
- Smart Home
- Medical & Healthcare
For more information to the RAC20NE-K/277/EPID series by RECOM and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
