Rutronik presents Ultra Wideband Dipole Antenna for 5G from PulseLarsen

05/07/2020 Know-How

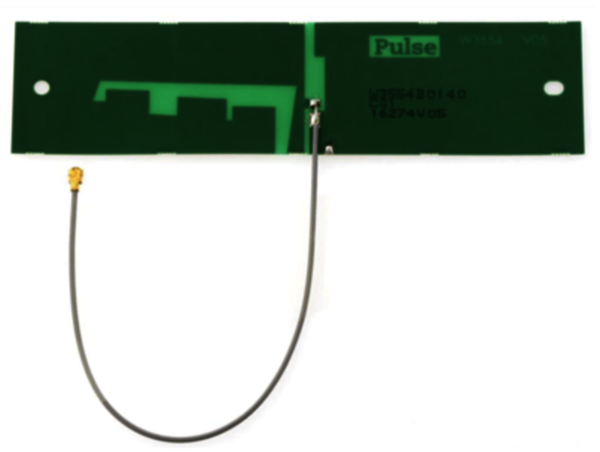

The W3554 series of PCB dipole antennas from PulseLarsen cover the frequency range from 698 to 6000MHz and are suitable for 5G applications. The antennas are available at www.rutronik24.com.

Target applications of the high efficiency dipole antenna of the W3554 Series are 2G, 3G, 4G and 5G. The antenna also works for GNSS (Global Naviga-tion Satellite System), WiFi, Bluetooth and Bluetooth Low Energy, Zigbee as well as ISM 868, 915, 2400 and 5000MHz. The antenna features a coaxial cable feed plus either U.FL, SMA, MMCX or per request further connectors. Measuring 30x120x0.2mm with a low weight of 1.5g, the PCB antenna is RoHS compliant.


For more information about PulseLarsen‘s new Antenna for 4G and 5G IoT Applications and a direct ordering option, please visit our e-commerce platform at <link www.rutronik24.com/product/pulse/w3554b0140/9506138.html _blank external-link-new-window "open internal link">www.rutronik24.com</link>.

Contact Person:

Jens Kattenbusch, Product Sales Manager Wireless
+49 7231 801 1548 | <link Jens.Kattenbusch@rutronik.com - mail "open internal link">Jens.Kattenbusch@rutronik.com</link>
