Saving space with MLCCs - High capacities in a small footprint

07/31/2024 Know-How

The electronics market is demanding smaller and smaller applications or the integration of more and more functions into existing devices. This makes printed circuit board space increasingly valuable. Suppliers of multilayer ceramic capacitors have responded accordingly.

Multilayer ceramic capacitors (MLCCs) are compact, cost effective, and reliable. They have very low equivalent series resistance (ESR) values, which allows them to smooth high ripple currents. They are often used in place of and/or in parallel with electrolytic capacitors to improve system performance.

Due to increasing miniaturization demands, there is a growing need for capacitors with high capacitance and improved temperature performance in ever smaller dimensions. However, in the so-called HiCap range (≥ 1 µF) and in the mid/high-volt range (voltages from 200 V to over 450 V and 630 V up to 5 kV), they quickly reach their limits. This is because capacitors of size 1812 or larger (1825, 2220, 2225, 3640, ...) are required here. Even with size 1210, which represents a certain performance optimum, multiple parallel connections and/or connections in series are required, which in turn requires comparatively large areas.

In addition to the capacitors, there are usually other, taller components on the printed circuit board, so that in principle more height is available for the capacitors, but this is not used in single chip applications. To save space, several capacitors can be combined into one component. They are stacked and connected in parallel. Compared to a single element, this gives them a lower ESR and equivalent series inductance (ESL) as well as a several times higher capacitance corresponding to the number of chips used. Two-chip elements are most commonly offered in sizes 1210, 1812, and 2220, although in extreme cases even they are available with up to ten chips and sizes up to approx. 30 mm × 50 mm. The individual chips are usually arranged horizontally with so-called J-leadframes for surface mounting (Fig. 1).

Through-hole versions are also available (Fig. 2). However, they are used less frequently, partly because of the difficulty of automating assembly, which leads to higher costs and longer production times.

However, the structure of MLCCs with leadframes can also be used to increase the performance and robustness of single chips against thermal and mechanical loads (Fig. 3).

Vertically stacked designs are also available for further optimization in terms of thermal stress and reduction of ESR and ESL (Fig. 4).

As a further special feature, Kemet also offers such parts without leadframes. For this purpose, the supplier has developed the so-called KONNEKT technology. It uses an innovative TLPS (transient liquid phase sintering) material to create a leadframe and lead-free multi-chip element. This guarantees further improvements in ESR and ESL as well as an increase in volume efficiency. These capacitors are also available with horizontally and vertically stacked chips.

In addition, special ceramics with positive DC bias are available from TDK – a specialty of the supplier. These CeraLink devices are suitable for high-frequency and high-temperature applications in power electronics, especially where space is limited and nominal currents, capacitance densities, and operating temperatures are high. The CeraLink capacitor consists of a PLZT (lead lanthanum zirconium titanate ) ceramic in combination with copper inner electrodes. By balancing high current-carrying capacity and capacitance, CeraLink allows the number of capacitors required to be reduced compared to MLCC, taking into account overall cost. Unlike conventional ceramic capacitors, CeraLink capacitors have their maximum capacitance at the specified operating point (positive bias behavior), which increases proportionally to the ripple voltage ratio, making them the ideal capacitor for fast-switching wide-bandgap semiconductors such as SiC and GaN.




For more information and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.

Subscribe to our newsletter and stay updated.

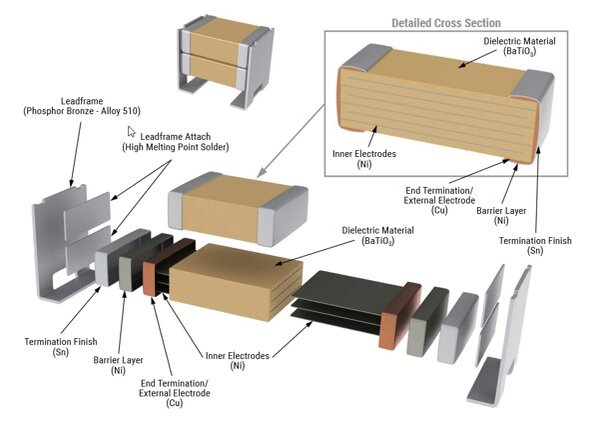

Schematic diagram of a multi-chip element

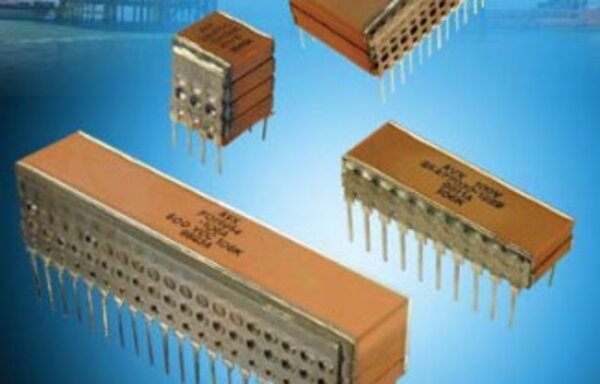

Multi-chip element in through-hole design

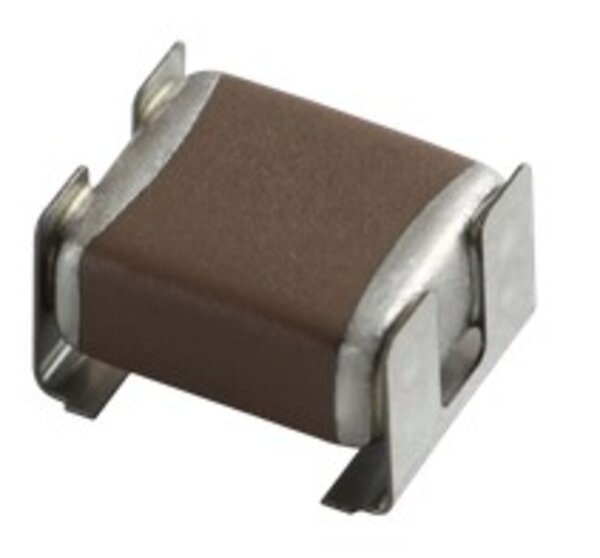

The leadframe gives the MLCC greater robustness against thermal and mechanical stresses.
