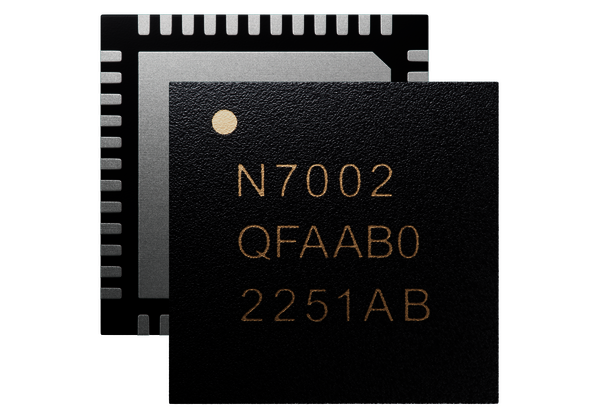

The nRF7002 is a cost-effective, secure, and powerful solution for equipping products with the latest Wi-Fi 6 technologies. The IC works with both the 2.4 GHz and 5 GHz Wi-Fi bands and convinces with extremely low power consumption. As a result, it is also possible to use it in battery-powered wireless products. Its integrated, advanced security features ensure the necessary protection of data and make the Companion IC the ideal choice for reliably implementing the latest Wi-Fi 6 technology in a wide range of applications.
Development platform from Nordic
The nRF7002 is intended for use in conjunction with the nRF Connect SDK. The comprehensive platform features a range of tools and libraries for developing applications that maximize the potential of the Companion IC. Thanks to this development environment, developers can implement their applications quickly, efficiently, and in a solution-oriented manner.
Advantages at a glance:
- Low power consumption
- Easy integration into a wide range of systems and applications
- High level of security thanks to WPA3
Other features at a glance:
- BSS coloring
- Complies with 802.11a/b/g/n/ac/ax
- 20 MHz channel bandwidth
- 64 QAM (MCS7) and 86 Mbps PHY throughput
- Target Wake Time
For more information about the Wi-Fi 6 Companion IC von Nordic Semiconductor and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
Contact Rutronik:
Julian Clauß | Corporate Product Manager Wireless | +49 7231 801 1796 | julian.clauss@rutronik.com
