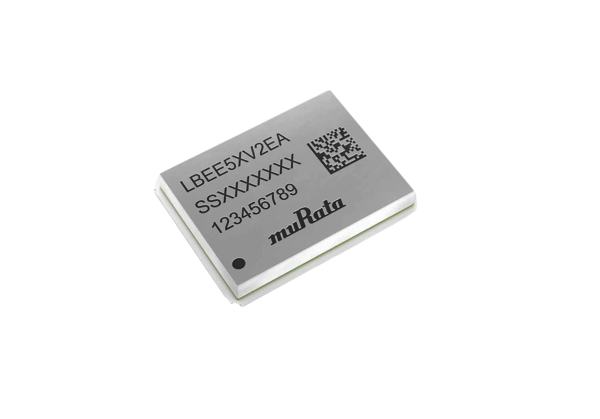

The module with tri-band capability (2.4 GHz, 5 GHz and 6 GHz) and 2 x 2 MIMO is available with 20 MHz, 40 MHz and 80 MHz channels. It manages up to MCS11 data rates (1,200 Mbit/s). The components are particularly powerful at a small size of 12.5 mm x 9.4 mm x 1.2 mm and a weight of just 360 mg and have connections for external antennas.
Benefits at a glance:
- Integrated SoC Infineon CYW55573
- Small form factor of 12.5 mm x 9.4 mm x 1.2 mm and 360 mg
- IEEE 802.11 a, b, g, n, ac, ax (Wi-Fi 6E) + BR/EDR/LE 5.3
- 2 x 2 MIMO with 20 MHz, 40 MHz and 80 MHz
- WLAN interfaces PCIe 3.0 Gen2, SDIO 3.0 / 2.0
- Bluetooth HCI via UART, PCM and I2S interfaces
- MCS11 data rates (1,200 Mbit/s)
Application examples:
- Industrial IoT
- Smart Home
- Video, audio and voice streaming
- xR (AR/VR) devices
- Gateways
- Wireless handheld systems
- Wearables
For more information to the LBEE5XV2EA-802 Typ 2EA combo module from Murata and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
