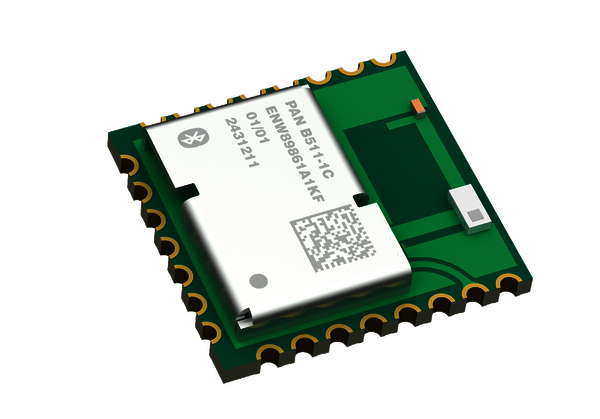

Panasonic's PAN B511-1x module features an integrated 128 MHz Arm Cortex-M33 processor, 5 MB NVM (non-volatile memory) and 256 kB RAM.
With a maximum transmission power of up to 8 dBm and a typical reception sensitivity of -98 dBm (at 1 Mb / s) and -106 dBm (at 125 kb / s in LE mode Long Range), the module is able to receive even very low signals at a wider range.
The component works reliably in a temperature range of -40 °C to +85 °C at a voltage range of 1.7 V to 3.6 V and has additional GPIO interfaces on the underside.
The module is available in three versions:
Economy: Bluetooth 6 & 802.15.4 module based on nRF54L15, with integrated chip antenna for use in
applications such as
- Smart Lighting
- White Goods
- Industrial sensors
Standard: Bluetooth 6 & 802.15.4 module based on nRF54L15, with integrated chip antenna for use in applications such as
- Medical devices
- Wearables
- Energy management
Premium: Bluetooth 6 & 802.15.4 module based on the nRF54L15 with integrated chip antenna, integrated slow-clock and additional 4 MB flash-memory for use in applications such as
- Machine learning
- Matter applications
Features at a glance:
- Voltage range from 1.7 V to 3.6 V
- Integrated chip antenna, later also bottom-pad antenna
- 128 MHz Arm Cortex-M33 processor
- 1.5 MB NVM and 256 kB RAM
- Available peripherals: GPIOs (32), high-speed SPI/UART, 4x SPI/UART/TWI, PDM, I2S, PWM, QDEC, ADC
Further application examples:
- IIoT and Internet of Everything
- Industry 4.0
- Automation
- Medical
- Advanced Robotics
- Advanced measurements, processing and analysis, AI
For more information to Panasonic´s PAN B511-1x and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
