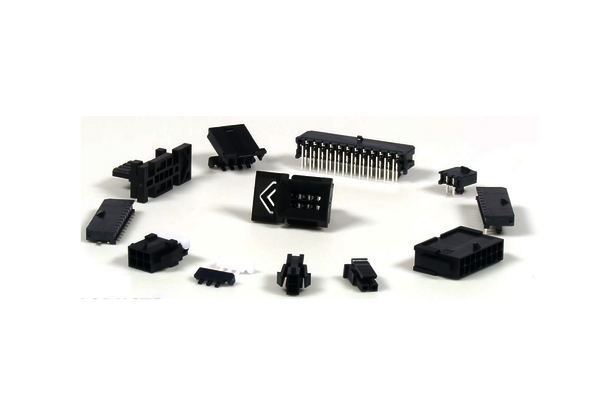

Micro-Fit 3.0 Blind-Mate Interface (BMI):
This variant has been specially developed for blind mating or applications that are difficult to access, has a moulded self-aligning feature and allows a maximum misalignment of 2.54 mm. The wire-to-wire and wire-to-board connectors are extremely robust and ideal for applications in harsh environments.
Micro-Fit TPA:
These connectors prevent contacts from being crushed during cable connections due to improper assembly. Their TPS with integrated secondary fuse also ensures that the contacts remain in place and do not slip.
Micro-Fit 3.0 CPI connector:
The Compliant Pin connector, whose special shape is reminiscent of the eye of a needle, enables a reliable connection. They are suitable for both male and female Micro-Fit crimp contacts, which offers the advantage of not having to purchase additional connectors. It is also possible to make ongoing changes from solder to the more cost-effective press-fit applications.
Micro-Fit 3.0 RMF terminals (Reduced Mating Force)
This connector design requires less mating and unmating force, making the interface particularly ergonomic and user-friendly. The RMF contacts enable switching to higher current levels, even during operation, and offer a higher current carrying capacity of 10 A for existing Micro-Fit components. The factory pre-lubricated version can be mated up to 250 times, making it the optimum choice for applications with many mating cycles. It is also available with conductor cross-sections from 22 to 24 and 26 to 30 AWG.
Benefits at a glance:
- 3.00 mm pitch
- Increased number of cycles
- Operating temperature range from -40 °C to 125 °C
- Prevents connection failures
- Available in numerous variants
- Suitable for robust applications
- For cable diameters from 18 mm to 30 mm
- For wire-to-wire, board-to-board and wire-to-board configurations
Some application examples:
- Automotive
- Non-sealed applications
- Manufacturer of cable harnesses
- Consumer appliances:
- Washing machines and dryers
- Freezers
- Scanners and printers
- Refrigerators
- Security systems
- Networks and telecommunications:
- Routers and switches
- Servers
- Storage
- Medical technology
- Patient monitors
- Diagnostic equipment
- Solar energy
For more information to the Micro-Fit family from Molex and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com. |
