High voltage solid-state power distribution

The CoolMOS™ S7T SJ MOSFET embeds a temperature sensor which is 40% more accurate and 10x faster compared to discrete sensor solutions and is optimized for low-frequency and high-current switching applications such as solid-state relay, circuit breaker, motor starters and line rectification designs in SMPS.

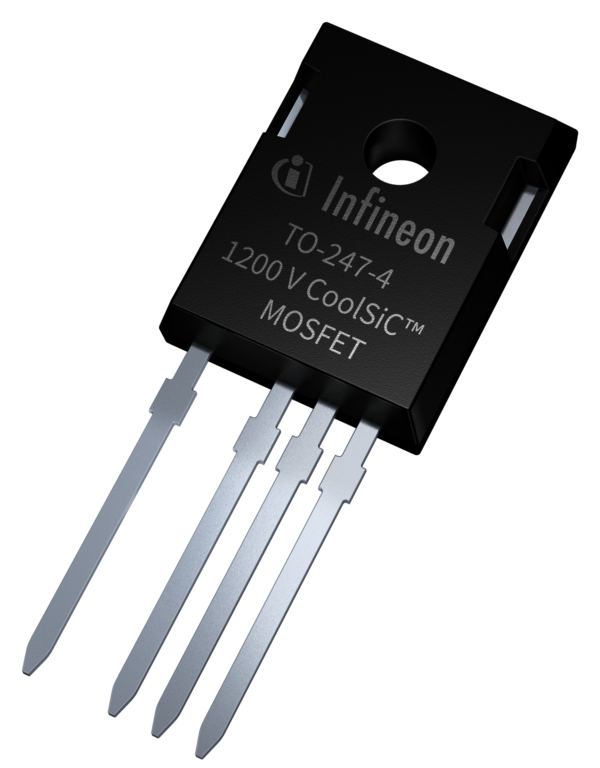

Infineon CoolSiC™ MOSFETs are built on a state-of-the-art trench semiconductor process optimized to allow for both the lowest losses in the application and the highest reliability in operation. The broad 750V and 1200V CoolSiC™ MOSFET discrete portfolio enables a flexible parameter-set for implementation of application-specific features.

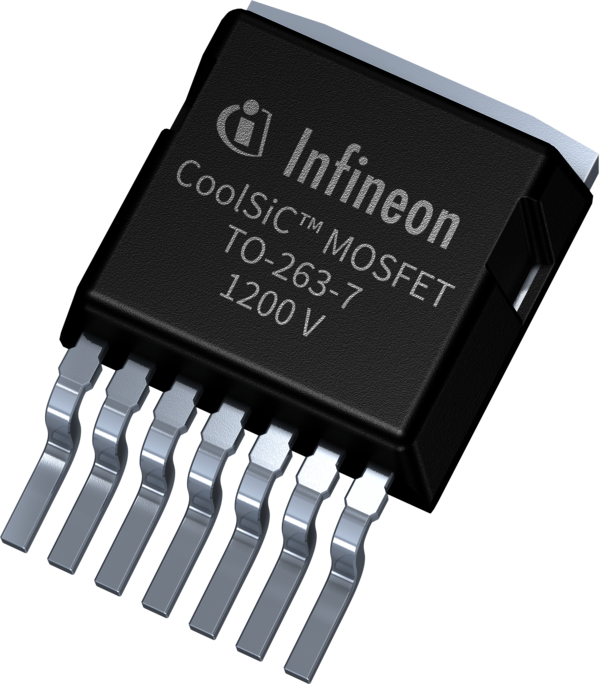

The CoolSiC™ MOSFET  Discrete 1200 V is build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability in operation. The low power losses of CoolSiC™ technology, combined with .XT interconnection technology in a new 1200 V optimized SMD package, enables top efficiency and passive cooling potential in applications such as drives, chargers and industrial powers supplies.

The ISOFACE™ dual- and quad-channel digital isolators are based on Infineon’s coreless transformer (CT) technology and provide robust high-voltage isolation for a broad range of applications. They are the preferred choice for isolated gate signal transfer in high-density power designs and isolated communication, such as in a UART voltage level shifter or CAN BUS isolation. Infineon's digital isolators are pin-to-pin compatible with competitors’ portfolio and offer improved CMTI performance and a lower current consumption with high propagation delay accuracy.

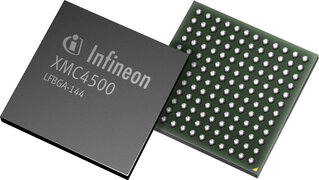

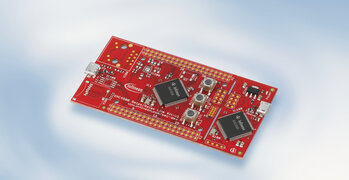

XMC4500 combines Infineon's leading-edge peripheral set with an industry-standard ARM® Cortex®-M4 core resulting in a power pack for energy-efficient industrial applications. XMC4500 controllers feature a configurable peripheral set that allow to tailor the device to specific application needs.

All XMC4000 devices are powered by Arm® Cortex®-M4 with a built-in DSP instruction set. The Single Precision Floating Point Unit, Direct Memory Access (DMA) feature and Memory Protection Unit (MPU) are state-of-the-art for all devices – even the smallest XMC4000 runs with up to 80MHz in core and peripherals. It comes with a comprehensive set of common, fast and precise analog/mixed signal, Timer/PWM and communication peripherals.

XMC4000 family delivers higher performance, larger embedded memory (Flash/RAM) and multiple communication interfaces to address the needs of solid-state solutions.

The PSoC™ 62 performance line, built on an ultra-low power 40-nm platform, is a combination of Arm® Cortex®-M4 and Arm® Cortex®-M0+ CPUs, with low-power Flash technology, programmable digital and analog resources, and best-in-class CAPSENSE™ technology for touch and proximity applications. Security is built into the platform architecture with hardware cryptographic accelerators, memory and peripheral protection units. PSoC™ 62 performance line is offered in a variety of packages including BGA, WLCSP, QFN, TQFP, and supports up to 2 MB of flash, 1 MB of on-chip SRAM, and up to 104 GPIOs.

PSoC™ 62 offers a secure, high-performance and flexible MCU with programmable digital and analog resources, large memory footprint and multiple package options to address the varied needs of solid-state solutions.

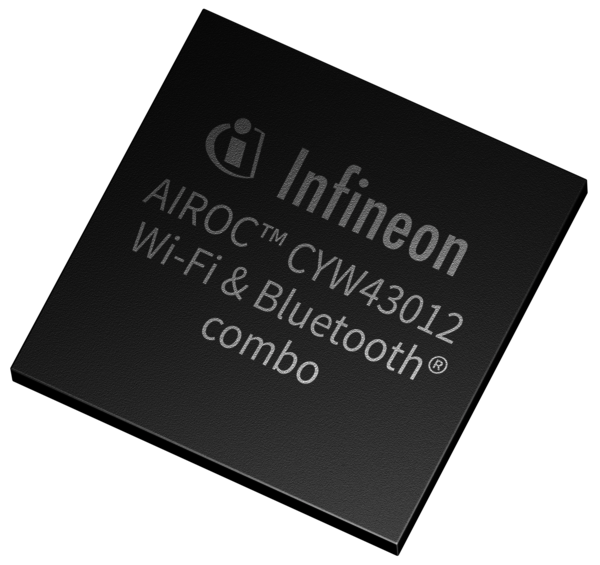

Infineon’s AIROC™ CYW43012 an ultra-low power single-chip, combo device features 1x1 dual-band 2.4 GHz and 5 GHz Wi-Fi 4 (802.11n) and Bluetooth® 5.0. With a low-power architecture, the CYW43012 is ideal for battery powered applications where best-in-class power consumption is critical. The CYW43012 provides 802.11ac friendliness by supporting 256-QAM (for 20 MHz channels in the 5 GHz band) enabling data rates up to 78 Mbps with 802.11ac access points. On-chip power amplifier and low-noise amplifiers are included for both the 2.4 and 5GHz bands.
The CYW43012 can deliver both local control via smartphone and cloud-based control in the industry’s lowest-power Wi-Fi 4/Bluetooth® 5.0 combo solution.

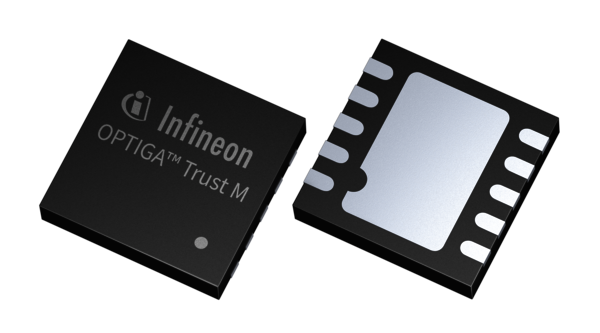

The OPTIGA™ Trust M IoT Security Development Kit is the easiest way to develop and evaluate end-to-end security use cases for your IoT devices. The kit enables you to prototype various security use cases and build full-featured IoT applications.
The board includes:

• OPTIGA™ Trust M security solution
• PSoC™ 62, an Arm® Cortex®-M4/M0+ microcontroller
• AIROC™ CYW43012 Wi-Fi & Bluetooth® combo chip is a low power device that supports dual-band (2.4 and 5.0 GHz) Wi-Fi and Bluetooth® 5.0.

Infineon’s OPTIREG™ family of linear voltage regulators (LDO) are easy-to-use integrated circuits (ICs) that provide simple power supply solutions. They are available in multiple variants including high precision tracking linear voltage regulators, variable linear voltage regulators, ultra-low quiescent current voltage regulators (LDO), and high-performance voltage regulators.
