About Kontron SBCs
Extreme temperature - Real-time processing – AI acceleration – Wide voltage input – TPM 2.0
Kontron offers a wide range of high-quality Single Board Computers in the form factors of 2.5” (pITX) and 3.5” standard, extended and extreme temperature ranges.
Kontron's SBCs leverage the latest processor technologies and chipset platforms, and utilize embedded technology components. They are rugged, secure and have low power consumption.
Depending on the application the Kontron SBCs can be selected from cost efficient to highly embedded in continuous 24/7 operation under high system loads.
The Next-Gen SBCs with integrated Intel® Iris® Xe Graphics, AI acceleration features and real-time computing capability on the same chip, can help system developers build a compact edge system that requires excellent graphics, efficient computing, real-time processing and / or AI acceleration for a variety of applications, such as smart manufacturing, healthcare, energy, retail and smart city.
The Single Board Computers of Kontron follow international industry size standards with well-defined mounting holes and standard I/O bracket areas. Our Single Board Computers ensure an extended long-term availability of up to 10 years from the release date, due to embedded key components and are CE, FCC, ICES, UKCA & UR (UL Recognized) compliant.

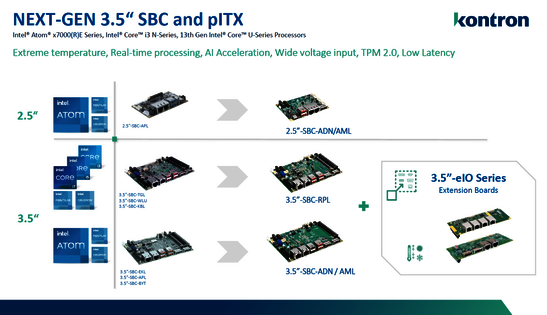

A board-to-board connector allows developers to add one of the expansion boards, named 3.5"-eIO, for extra I/O ports or features, including additional display (DP & HDMI) connectors and LAN ports. The 3.5"-eIOs support both standard and industrial operating temperature ranges and are compatible with the 3.5”-SBC-RPL, 3.5”-SBC-ADN, 3.5”-SBC-AML as well as previous generations the 3.5"-SBC-EKL and the 3.5"-SBC-TGL. 3.5”-eIO Series expansion boards enable faster time-to-market and reduced development costs. With the new eIO-Design Guide our customers can develop their own expansion board.
Kontron also offers BoxPC and HMI Solutions for 2.5” (pITX) and 3.5” Single Board Computers.
New Product Introduction
pITX 2.5”-SBC-AML/ADN
The new 2.5”-SBC-ADN and 2.5”-SBC-AML support all variants of low-power Intel Atom® x7000E Series, Intel® Core™ i3 N-Series, Intel® N-Series and Intel Atom® x7000RE series processors. They are a performance-efficient, low-latency, and rugged solution in a small footprint.
- 3x 4K displays at 60 fps through an internal eDP and two external connectors: DP and DP over USB-C
- Resistant to shock and vibration due to the soldered in-band ECC-enabled LPDDR5 (4, 8, or 16 GB) and soldered eMMC storage (32 GB, 64 GB, or 128 GB)
- 2x 2.5 GbE LAN Intel® I226 controllers
3x USB 3.2 Gen 2 (Type A and Type C) at up to 10 Gbps
The new pITX are ideal for critical real-time computing in industrial automation, smart cities, retail, and healthcare applications.
3.5”-SBC-RPL
The 3.5”-SBC-RPL driven by hybrid-core 13th Gen Intel® Core™ U-Series and Intel® U-Series processors (codenamed Raptor Lake U), which enable an optimal synergy between performance and efficiency.
- Multiple embedded controller features
- Excellent graphics with Intel® Iris® Xe
- 8K resolution at 60 fps via 2xDP connectors
- 4x displays through additional ports, ideal for video walls and control rooms
- 2x DDR5 5200 SO-DIMM
- 2x 2.5 GbE LAN Intel® i226 controllers
- 4x USB 3.2 Gen 2 (10 Gbps)
New 3.5”-SBC-RPL is ideal for a compact edge system that requires excellent graphics, efficient computing, real-time processing and / or AI acceleration for a variety of applications.
3.5”-SBC-AML/ADN
The new 3.5”-SBC-ADN and 3.5”-SBC-AML support all variants of low-power Intel Atom® x7000(R)E-, Intel® Core™ i3 N- and Intel® N-series processors and is ideal for development of compact IoT edge devices with enhanced processing and graphics performance, faster AI inference capabilities as well as low power consumption and low-latency.
- AI acceleration and real-time computing capabilities
- Multiple embedded controller features
- 3x 4K displays at 60 fps through an internal eDP and two external connectors: DP and DP over USB-C
- 1x DDR5 4800 SO-DIMM
- 2x 2.5 GbE LAN Intel® I226 controllers
- 3x USB 3.2 Gen 2 (2x Type A and 1x Type C) at up to 10 Gbps
Featured Products
pITX 2.5”-SBC
2.5”-SBC-AML/ADN pITX
Intel Atom® x7000RE Series (codenamed Amston Lake), Intel Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors
3x 4K displays at 60 fps through an internal eDP and two external connectors: DP and DP over USB-C
Resistant to shock and vibration due to the soldered in-band ECC-enabled LPDDR5 (4, 8, or 16 GB) and soldered eMMC storage (32 GB, 64 GB, or 128 GB)
2x 2.5 GbE LAN Intel® I226 controllers
- 3x USB 3.2 Gen 2 (Type A and Type C) at up to 10 Gbps
3.5”-SBC
3.5”-SBC-RPL
- 13th Gen Intel® Core™ U-Series processors (codenamed Raptor Lake U)
- AI acceleration and real-time computing capabilities
- Excellent graphics with Intel® Iris® Xe
- Multiple embedded controller features
- 4x 8K UHD displays at 60 fps 2x DP, 1x eDP / LVDS (more display I/Os supported via B2B connector)
- 2x DDR5 5200 SO-DIMM
- 2x 2.5 GbE LAN Intel® i226 controllers
- 4x USB 3.2 Gen 2 (10 Gbps)
- 1x B2B Connector for extended I/Os
3.5”-SBC-AML/ADN
- Intel Atom® x7000RE Series (codenamed Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors
- AI acceleration and real-time computing capabilities
- Multiple embedded controller features
- 3x 4K displays at 60 fps via 3x DP (2x full DP, 1x USB-C), 1x LVDS for 3-display support
- 1x DDR5 4800 SO-DIMM
- 2x 2.5 GbE LAN Intel® I226 controllers
- 3x USB 3.2 Gen 2 (2x Type A and 1x Type C) at up to 10 Gbps
- 1x B2B Connector for extended I/Os
3.5"-SBC-EKL
- Intel® Atom® x6000E Series, Celeron® J6000 / N6000 Series and Pentium® J6000 / N6000 Series processors (codenamed Elkhart Lake)
- 2x DP, 1x LVDS for video output
- 2x 2.5 GbE LAN Intel® controllers
- 2x USB 3.2 Gen 2, 6x USB 2.0, 2x RS232/422/485, 2x CAN Bus, 8x DIO for peripherals
- 1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion
- 1x B2B Connector for extended I/Os
3.5"-SBC-TGL
- 11th Generation Intel® Core™ U-Series and Celeron® 6000 Series processors (codenamed Tiger Lake UP3) integrated with Intel’s next-generation Iris® Xe Graphics
- 2x DP, 1x LVDS for video output
- 2x 2.5 GbE LAN Intel® controllers
- 2x USB 3.2 Gen 2, 6x USB 2.0, 2x RS232/422/485, 2x CAN Bus, 8x DIO for peripherals
- 1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion
- 1x B2B Connector for extended I/Os
3.5"-SBC-WLU
- 8th Generation Intel® Core™ U-Series processors
- 1x LVDS, 2x DP++ for triple display support
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 2, 4x USB 2.0, 2x RS232/422/485 for USB & serial device connection
- 8x DIO for device / signal control
- 1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion
3.5"-SBC-KBL
- 7th Generation Intel® Core™ / Celeron® U-Series Processors
- 1x LVDS, 1x DP, 1x HDMI 2.0 for display output
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 1, 2x USB 2.0, 2x RS232/422/485, 8x DIO for peripherals
- Up to 2x SATA 3.0 for storage
- 1x mPCIe, 1x M.2 Key B for expansion
3.5"-SBC-APL V2.0
- Intel Atom® E3900 Series & Pentium® / Celeron® N- / J-Series
- 1x LVDS, 1x DP, 1x HDMI for triple display support
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 1, up to 3x USB 2.0, 2x RS232/422/485, 4x RS232, 8x DIO for peripherals
- 1x SATA 3.0, 1x Micro-SD Cage for storage
- 1x mPCIe, 1x M.2 Key B for expansion
3.5"-SBC-VR1000
- AMD Ryzen™ V1000 / R1000 Series processors
- 1x LVDS, 1x DP, 1x HDMI 2.0 for triple display support
- 2x GbE LAN for Ethernet
- Up to 4x USB 3.2 Gen 2, up to 6x USB 2.0, 2x RS232/422/485, 2x RS232 for peripherals
- 8x DIO for device / signal control
- 2x SATA 3.0, 1x mPCIe, 1x M.2 Key M for storage & expansion
3.5”-eIO
3.5”-eIO-4ETH / 3.5”-eIO-2ETH
- 4x / 2x - FE / 1GbE / 2.5GbE LAN ports Intel® I226
- Operating temperature -40 °C ~ 85 °C
- Compatible to Kontron 3.5”-SBC Series with board-to-board connector (3.5”-SBC-RPL, 3.5”-SBC-ADN, 3.5”-SBC-AML, 3.5"-SBC-EKL, 3.5"-SBC-TGL)
3.5"-eIO-GPA-0
- 2x DP, 2x 2.5 GbE LAN, 1x DC In Terminal Block on rear I/O panel
- 1x UART, 1x I2C, 1x SMBus, 1x GSPI onboard
- Operating temperature: 0 °C ~ 60 °C
- Compatible to Kontron 3.5”-SBC Series with board-to-board connector (3.5”-SBC-RPL, 3.5”-SBC-ADN, 3.5”-SBC-AML, 3.5"-SBC-EKL, 3.5"-SBC-TGL)
3.5"-eIO-GPA-1
- 2x DP, 2x 2.5 GbE LAN on rear I/O panel
- 1x UART, 1x I2C, 1x SMBus, 1x GSPI onboard
- Operating temperature: 0 °C ~ 60 °C
- Compatible to Kontron 3.5”-SBC Series with board-to-board connector (3.5”-SBC-RPL, 3.5”-SBC-ADN, 3.5”-SBC-AML, 3.5"-SBC-EKL, 3.5"-SBC-TGL)
3.5"-eIO-GPA-2-XT
- 2x DP, 2x 2.5 GbE LAN, 1x DC In Terminal Block on rear I/O panel
- 1x UART, 1x I2C, 1x SMBus, 1x GSPI onboard
- Operating temperature: -40 °C ~ 85 °C
- Compatible to Kontron 3.5”-SBC Series with board-to-board connector (3.5”-SBC-RPL, 3.5”-SBC-ADN, 3.5”-SBC-AML, 3.5"-SBC-EKL, 3.5"-SBC-TGL)
