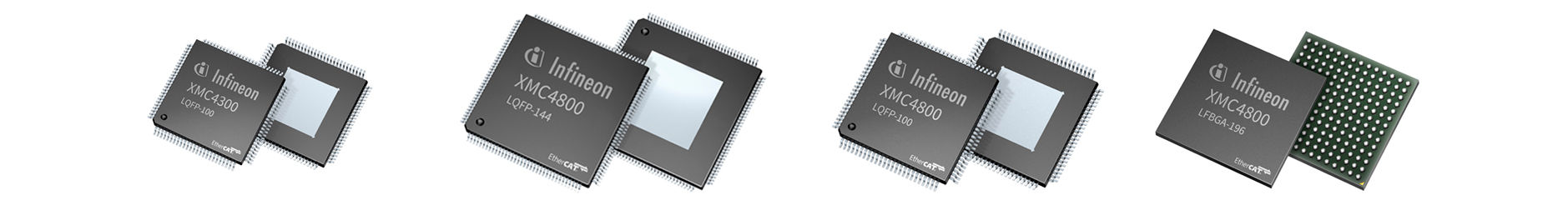

XMC4300 and XMC4800 - First Microcontroller Series with Integrated EtherCAT®
The XMC4300 and XMC4800 are the industry’s first-ever Microcontrollers with integrated EtherCAT® node on an ARM® Cortex®-M processor with on-chip flash and analog/mixed signal capabilities. Thus enabling the most compact designs, both series require no additional components such as dedicated EtherCAT® ASIC, external memory or a quartz clock generator to start up the EtherCAT® slave controller. Designers benefit from BOM cost and PCB space savings.
As both, XMC4300 and XMC4800 series, are member of the XMC4000 Microcontroller family with full pin and code compatibility, the XMC4300 and XMC4800 are designed to the same high quality and reliability standards as the rest of the family. The XMC4300 and XMC4800 enable EtherCAT® applications in harsh environments with 125°C ambient temperatures. In addition, they will be available through 2031 or longer.
Main Customers Benefits
- First EtherCAT® node integrated on standard ARM® Cortex®-M controllers with on-chip Flash and Analog/Mixed Signal
- Most compact design without need for a dedicated EtherCAT® ASIC, external memory and crystal resulting in cost saving on BOM and PCB space
- Pin and code compatibility with the established XMC4000 microcontroller family offers existing XMC microcontroller customers a seamless upgrade path to EtherCAT®
- Outstanding Flash to RAM ratio at XMC4300, top notch in RAM and Flash integration at XMC4800
- First EtherCAT® node running at 125°C ambient temperature
- Guaranteed availability through 2031 or longer
Webinar
In this Webinar experts from Infineon and Rutronik explain the widest product portfolio with the most competitive feature set and pricing for EtherCAT® based applications.
XMC4300 and XMC4800 Series
New Microcontroller Series XMC4300
The new XMC4300 microcontroller series further reduces complexity in EtherCAT® implementation and cost in factory automation, industrial motor control, I/O modules and robotics. The XMC4300 series was specifically developed for EtherCAT® industrial applications, where cost pressure places a premium on design flexibility, connectivity and performance without compromise to EtherCAT® communication features.
Application / Target Markets:
- Medium-end Industrial Control
- Industrial Communication
Key Features:
- Cortex-M4 @ 144MHz
- EtherCAT®
- Outstanding Flash RAM ratio with 256kB Flash and 128kB RAM
- 2 CAN nodes with 64 Message Objects
- Rich Industrial and External Media Connectivity
- 125°C extended Temperature Range
- Long-term availability with >15 years
- Free DAVE™ IDE and DAVE Apps

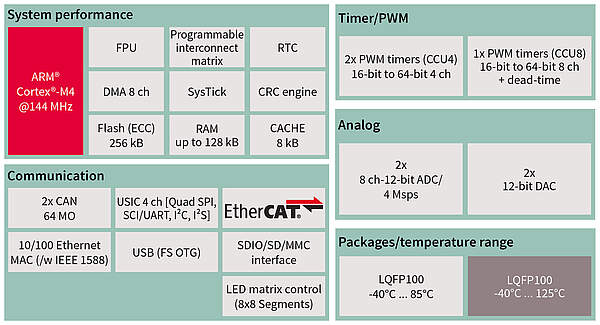

XMC4300 Series Block Overview
|
Product Name |
OPN |
SP Number |
Feature Set |
Compatibility |
|
XMC4300F100F256AAXQMA1 |
SP001410668 |
EtherCAT®, 256 kB Flash/128 kB RAM, 2x CAN nodes, standard Ethernet MAC |
Pin compatible with all XMC4000 devices in LQFP-100. Code compatible with all XMC4000 devices. |
|
|
XMC4300F100K256AAXQMA1 |
SP001410674 |
EtherCAT®, 256 kB Flash/128 kB RAM, 2x CAN nodes, standard Ethernet MAC |
Pin compatible with all XMC4000 devices in LQFP-100. Code compatible with all XMC4000 devices. |
Microcontroller Series XMC4800
For ease-of-use EtherCAT® implementation
The XMC4800 offers the EtherCAT® community a new – previously unimaginable – benchmark for ease of implementation. It is the market’s first-ever microcontroller to integrate an EtherCAT® node on an ARM® Cortex®-M controller with on-chip flash and analog/mixed signal capabilities. The XMC4800 enables the most compact designs, eliminating the need for a dedicated EtherCAT® ASIC, external memory and crystal. Designers benefit from BOM cost and PCB space savings.
Application / Target Markets:
- Medium to higher-end industrial control
- Industrial communication
- Transportation
Key Features:
- ARM® Cortex®-M4 at 144MHz
- EtherCAT®
- Large on-chip memories 2MB Flash, 352kB RAM
- 6 CAN nodes with 256 message objects
- Rich industrial and external media connectivity
- Safety package supporting SIL-2/3
- 125°C extended temperature range
- Long-term availability with >15 years
- IEC 60730 class B compliant LIB
- Free DAVE™ IDE and DAVE Apps

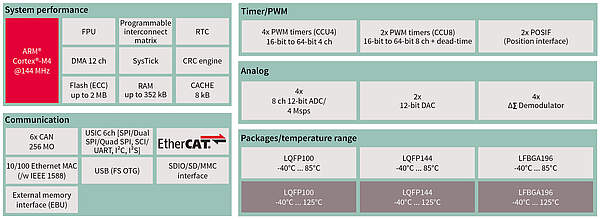

XMC4800 series block Overview
| Product Name | OPN | SP Number | Feature set | Compatibility |
| XMC4800-F100F1024 AA | XMC4800F100F1024AAXQMA1 | SP001311770 | EtherCAT®, 1 MB Flash/200 kB RAM, 6x CAN nodes, standard Ethernet MAC | Pin compatible with all XMC4000 devices in LQFP-100. Code compatible with all XMC4000 devices. |
| XMC4800-F100K1024 AA | XMC4800F100K1024AAXQMA1 | SP001311780 | ||
| XMC4800-F100F1536 AA | XMC4800F100F1536AAXQMA1 | SP001311776 | EtherCAT®, 1.5 MB Flash/276 kB RAM, 6x CAN nodes, standard Ethernet MAC | |
| XMC4800-F100K1536 AA | XMC4800F100K1536AAXQMA1 | SP001311786 | ||
| XMC4800-F100F2048 AA | XMC4800F100F2048AAXQMA1 | SP001311792 | EtherCAT®, 2 MB Flash/352 kB RAM, 6x CAN nodes, standard Ethernet MAC | |
| XMC4800-F100K2048 AA | XMC4800F100K2048AAXQMA1 | SP001311796 | ||
| MC4800-F144F1024 AA | XMC4800F144F1024AAXQMA1 | SP001311800 | EtherCAT®, 1 MB Flash/200 kB RAM, 6x CAN nodes, standard Ethernet MAC | Pin compatible with all XMC4000 devices in LQFP-144. Code compatible with all XMC4000 devices. |
| XMC4800-F144K1024 AA | XMC4800F144K1024AAXQMA1 | SP001311808 | ||
| XMC4800-F144F1536 AA | XMC4800F144F1536AAXQMA1 | SP001311804 | EtherCAT®, 1.5 MB Flash/276 kB RAM, 6x CAN nodes, standard Ethernet MAC | |
| XMC4800-F144K1536 AA | XMC4800F144K1536AAXQMA1 | SP001311810 | ||
| XMC4800-F144F2048 AA | XMC4800F144F2048AAXQMA1 | SP001311806 | EtherCAT®, 2 MB Flash/352 kB RAM, 6x CAN nodes, standard Ethernet MAC | |
| XMC4800-F144K2048 AA | XMC4800F144K2048AAXQMA1 | SP001311812 | ||
| XMC4800-E196F1024 AA | XMC4800E196F1024AAXQMA1 | SP001366298 | EtherCAT®, 1 MB Flash/200 kB RAM, 6x CAN nodes, standard Ethernet MAC | Upwards pin compatible with all XMC4000 devices in LFBGA-144. Code compatible with all XMC4000 devices. |
| XMC4800-E196K1024 AA | XMC4800E196K1024AAXQMA1 | SP001366304 | ||
| XMC4800-E196F1536 AA | XMC4800E196F1536AAXQMA1 | SP001366300 | EtherCAT®, 1.5 MB Flash/276 kB RAM, 6x CAN nodes, standard Ethernet MAC | |
| XMC4800-E196K1536 AA | XMC4800E196K1536AAXQMA1 | SP001366306 | ||
| XMC4800-E196F2048 AA | XMC4800E196F2048AAXQMA1 | SP001366302 | EtherCAT®, 2 MB Flash/352 kB RAM, 6x CAN nodes, standard Ethernet MAC | |
| XMC4800-E196K2048 AA | XMC4800E196K2048AAXQMA1 | SP001320596 |
