The new Rutronik Development Kit RDK3 with Infineon's PSoC™ 64 MCU

Accelerate your pre-development phase with the wireless ultra-low power IoT Bluetooth® board with state of the art hardware-based security features

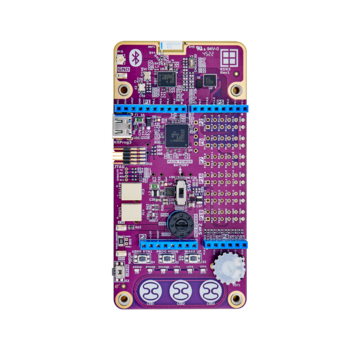

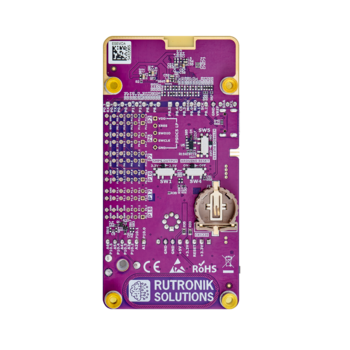

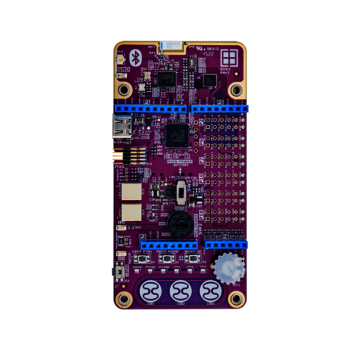

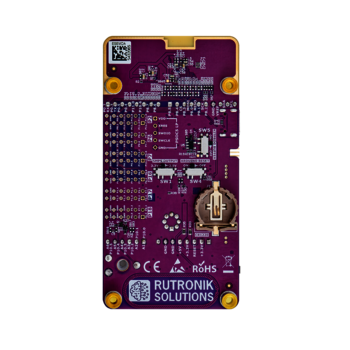

The new base board Rutronik Development Kit RDK3 offers a complete solution for wireless Bluetooth® Low Energy (LE) connections with high security standards at extremely low power consumption. Hardware and firmware developers can thus reduce time and costs in the pre-development phase. As a result, the RDK3 makes a significant contribution to bringing new applications to market much faster.

The RDK3 can be used in a wide range of IoT Applications and Future Markets. These include Advanced Robotics, Smart Building, Smart Factory, Healthcare and Wearables. The heart of the base board is the PSoC 64 Secured MCU with Bluetooth® LE from Infineon. The MCU is ideally suited for low power, secured, battery operated IoT products that require Bluetooth® Low Energy (LE) cloud-based applications that require a high level of protection.

The RDK3 features Arduino interfaces and can easily be combined with adapter boards from Rutronik such as the HMS Anybus, Text To SpeechRAB1 - Sensorfusion and RAB2 - CO2.

What's more? The RDK3 offers secure element functionality that can be used to build and authenticate secured applications. Moreover, you benefit from ultra low power with Bluetooth® Low Energy and the RDK3 can be combined with all adapter boards from Rutronik (e.g. RAB1 - Sensorfusion, RAB2 - CO2, Text To Speech).



The RDK3 can be used in a wide range of IoT applications and future markets. These include advanced robotics, smart building, smart factory, and smart farming. At the heart of the base board is the PSoC 64TM Secure MCU from Infineon. The MCU is ideally suited for cloud-based applications that require a high level of protection.



Rutronik Development Kit RDK3 – Target Markets & Applications

Intelligent, networked systems form the basis for applications in industrial automation. With a growing number of devices connecting to the internet, security must be established between the hardware, cloud applications and servers, and finally the users and services. This is in addition to the other end product requirements like longer battery life, aesthetic user interfaces, adequate data processing capability on the edge node.

Smart Building

  • Attendance Control
  • Door Lock
  • Intelligent Lighting



Robotics

  • Robot
  • Cobot
  • AMR



Smart Factory

  • AGV
  • Smart Conveyor Technology



Healthcare

  • Smartwatch
  • Smart Scale
  • Blood Pressure Measurement
  • Continuous Glucose Monitor

Rutronik System Solutions

From Single Product to Solution from Basic Level to Research Level

Rutronik System Solutions combine the best products based on their features and performance aiming at creating innovative and best-in-class solutions. Thus, we decisively shorten the time-to-market in dynamic industrial environments. Customers gain the necessary decision-making freedom in the research and pre-development phase and a time advantage over competitors.

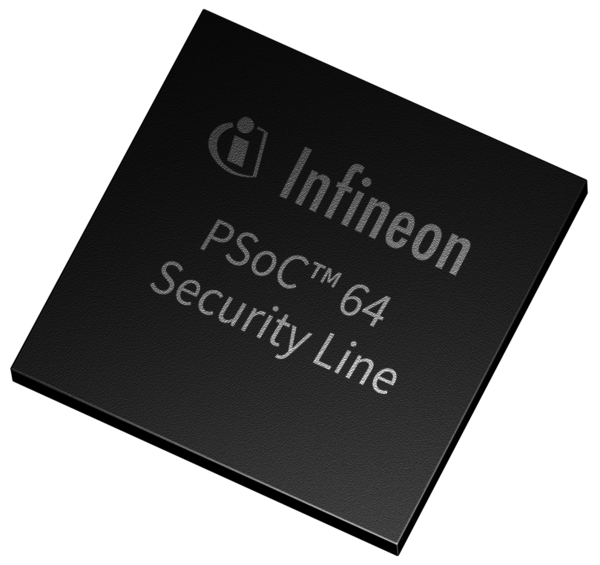

Infineon's PSoC™ 64 Secured MCU

Optimized for Secure, Low Power, Edge IoT Applications

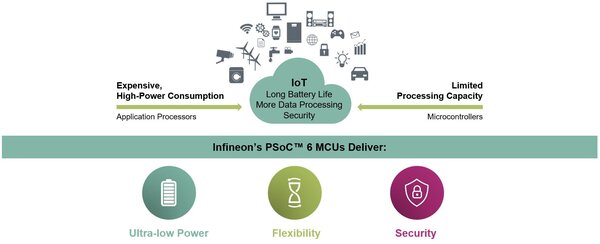

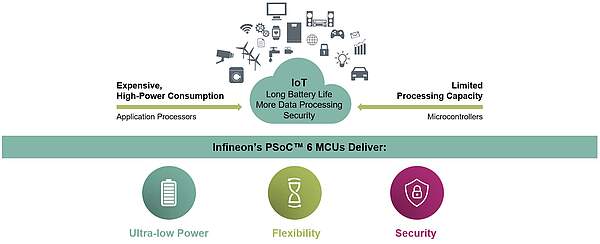

The PSoC™ 6 family is built on an ultra-low-power architecture, and the MCU's feature low-power design techniques that are ideal for battery powered applications. The dual-core Arm® Cortex®-M4 and Cortex®-M0+ architecture lets designers optimize for power and performance simultaneously. Using its dual cores combined with configurable memory and peripheral protection units, the PSoC™ 6 MCU delivers the high levels of protection defined by the Platform Security Architecture (PSA) from Arm®.


Designers can use the MCU's rich analog and digital peripherals to create custom analog front-ends (AFEs) or digital interfaces for innovative system components such as MEMS sensors, electronic-ink displays. The PSoC™ 6 MCU features the latest generation of industry-leading CAPSENSE™ capacitive-sensing technology, enabling modern touch and gesture-based interfaces that are robust and reliable. PSoC™ 6 MCU, paired with Infineon's AIROC™ Wi-Fi, AIROC™ Bluetooth®, or AIROC™ combos radio modules, is the perfect solution for secured, low-power, feature-rich IoT products.


Benefits and Key Features from Infineon's PSoC™64

Get to know the new Rutronik Development Kit RDK3 with Infineon PSoC™ 64 at its center. The just released RDK3 offers a complete solution for hardware and firmware developers for proof-of-concepts in a very short time. Discover more advantages and key features of the PSoC™ 64:

  • The MCU offers three-levels of hardware- and firmware-based resource isolation
  • The dual Arm® Cortex® – M-cores offer a secure M0+ core, logically partitioned from a user application running on the other M4 core
  • Security across the full lifecycle of the product from onboarding to decommissioning, field updates
  • Accelerate time to market, reduce R&D spend and certification efforts for developing secure IoT applications
  • Reduce BoM cost by integrating edge compute, touch user interface, wireless connectivity, sensor interfaces in a single chip solution
  • Longer battery life for battery operated IoT applications

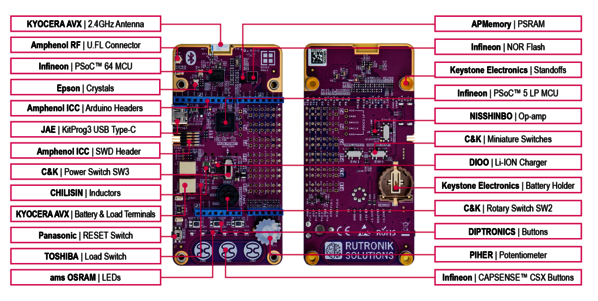

Infineon Products on RDK3

Focus Design Products

PSoC™ 6 MCU, with its power/performance optimized dual core CPU, rich analog and digital peripherals, industry leading CAPSENSE™ helps developers to create differentiated IoT products in the market.

PSoC™ 64 Secured MCU incorporates all of the key features of PSoC™ 6, and in addition supports secure onboarding, secure boot, secure firmware updates, security services enabling a secure, low power, single chip solution for battery operated IoT applications.

The FL-L family devices are flash non-volatile memory products using:

  • Floating gate technology
  • 65-nm process lithography

The FL-L family connects to a host system via a serial peripheral interface (SPI). Traditional SPI single bit serial input and output (single I/O or SIO) is supported as well as optional two bit (Dual I/O or DIO) and four bit wide Quad I/O (QIO), and Quad Peripheral Interface (QPI) commands. In addition, there are Double Data Rate (DDR) Read commands for QIO and QPI that transfer address and read data on both edges of the clock. The architecture features a page programming buffer that allows up to 256 bytes to be programmed in one operation and provides individual 4 kB sector, 32 kB half block sector, 64 kB block sector, or entire chip erase. By using FL-L family devices at the higher clock rates supported, with Quad commands, the instruction read transfer rate can match or exceed traditional parallel interface, asynchronous, NOR Flash memories, while reducing signal count dramatically. The FL-L family products offer high densities coupled with the flexibility and fast performance required by a variety of mobile or embedded applications. Provides an ideal storage solution for systems with limited space, signal connections, and power. These memories offer flexibility and performance well beyond ordinary serial flash devices. They are ideal for code shadowing to RAM, executing code directly (XIP), and storing re-programmable data.
