Intelligent Power Distribution “The Future of the Vehicle Electrical System”
One of the major trends shaping power distribution in today’s cars is the replacement of relays and fuses with semiconductors. But this is not as straightforward as it sounds.
One of the Major Trends shaping Power Distribution in today’s Cars is the Replacement of Relays and Fuses with Semiconductors. But this is not as Straightforward as it Sounds.
Modern cars feature numerous advanced driver assistance systems (ADAS). All safety-critical ADAS applications must be designed for high availability. Automated driving functions are even more challenging to implement as these introduce fail operational requirements for the power distribution system.
Overall, this calls for “dependable power”, i.e. the failure-tolerant supply and distribution of energy throughout the vehicle. The need for dependable power has a significant impact on the power distribution system, requiring designers to replace relays and fuses with semiconductors. These have the advantage of improved system reliability thanks to additional diagnostics functions and enhanced protection features.
There are multiple ways to replace relays and fuses in the power distribution system. The most common are (see Figure 1):

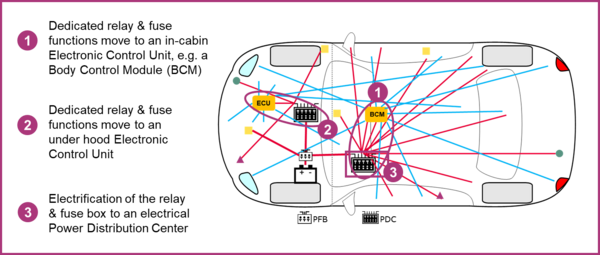

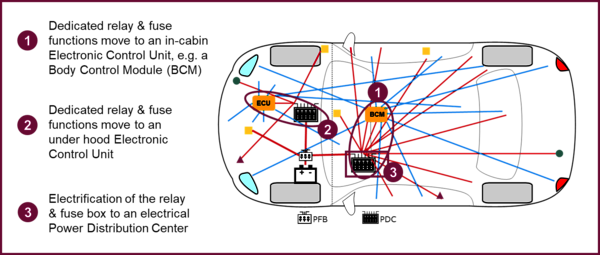

Figure 1: Visualization of the different ways relays and fuses can be replaced
Reliability-critical functions started moving from the relay and fuse box, also known as the power distribution center (PDC), to the BCM or ECU a decade ago. Today, one of the major challenges for designers lies in optimizing the wire harness by reducing its high cost, length, weight and complexity. One way to do this is to electrify the PDC with semiconductors and thus create an electrical power distribution center (ePDC). This can be positioned at any location in the vehicle, even in non-accessible areas. This flexible positioning in the car means that these boxes can be distributed across a decentralized power distribution system, thus optimizing the wire harness configuration. This gives ePDCs a significant advantage over relay- and fuse-based PDCs as these are restricted to easily accessible areas in order to limit labor cost in the event of a malfunction.
Electrification of the PDC not just replaces relays and fuses, it also transfers the hard-wired plug-in relay and fuse box to a PCB with surface-mounted components to actuate the various loads including the supply, control and communication infrastructure devices. Infineon offers a complete chipset solution for emerging ePDC systems (see Figure 2) replacing relays and fuses, also simplifying design-in with scalable product families offering the highest design flexibility, best performance and highest quality level.

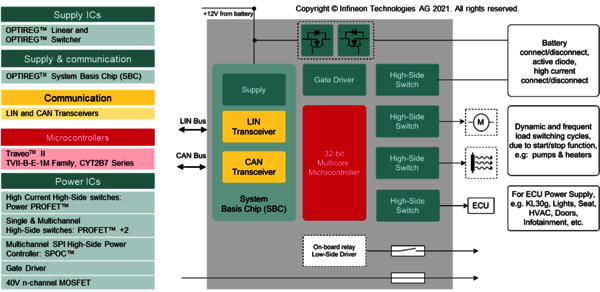

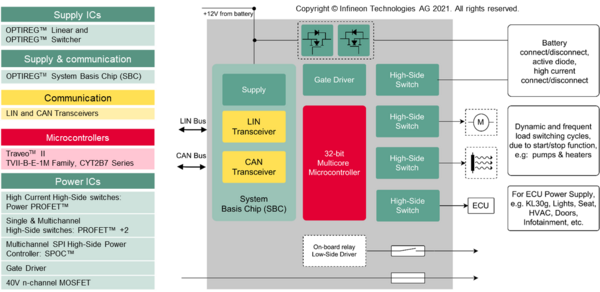

Figure 2: Block diagram of an electrical power distribution center (ePDC)
1: Dedicated Functions Move to the Body Control Module (BCM)
The in-cabin ECU, e.g. the BCM provides an infrastructure of supply, control and communication to add relay and fuse functions. A perfect fit for this application are the Infineon High Side Switches, enabling scalability of electrical parameters, flexibility of feature sets, configurability of SPI devices and a best quality performance.

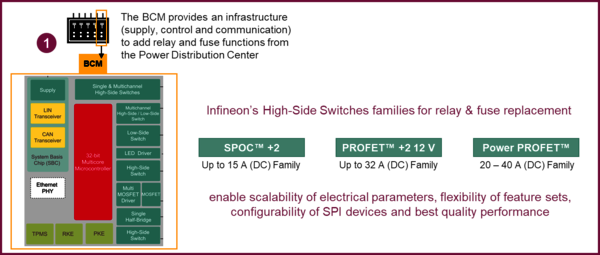

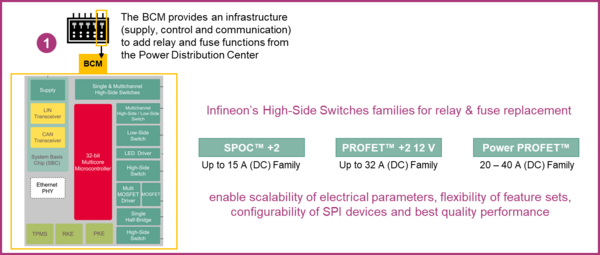

Dedicated functions move to the body control module (BCM)
2: Dedicated Functions Move to an Electronic Control Unit (ECU)
The under hood ECU provides as well an infrastructure of supply, control and communication to add relay and fuse functions. Compared to the in-cabin ECU, the ambient temperature is higher and with a qualification according to AEC-Q100, the PROFET™+2 12V Grade 0 family is the best choice for such kind of application.

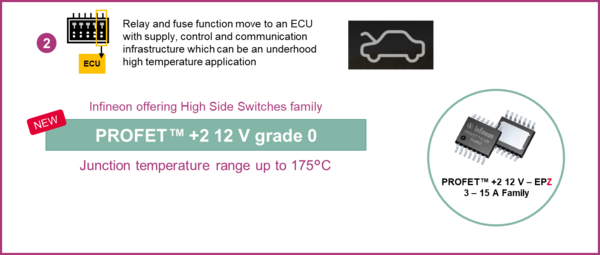

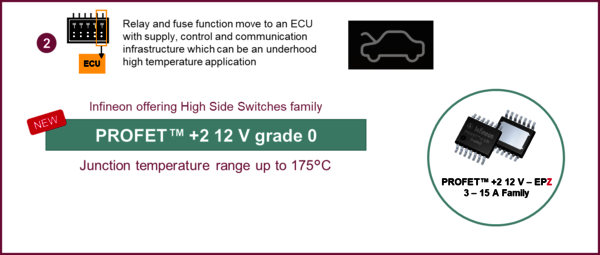

Dedicated functions move to an electronic control unit (ECU)
3: The Relay and Fuse Box is Electrified as an Electrical Power Distribution Center (ePDC)
The relay and fuse box is electrified as an electrical power distribution center (ePDC) The electrification of the relay & fuse box to an electrical Power Distribution Center is certainly the highest effort but enables maximum system cost reduction. Infineon provides easy to design-in chip-set solutions for the electrification of the power distribution center (PDC).

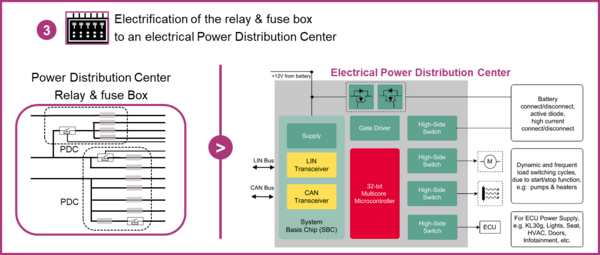

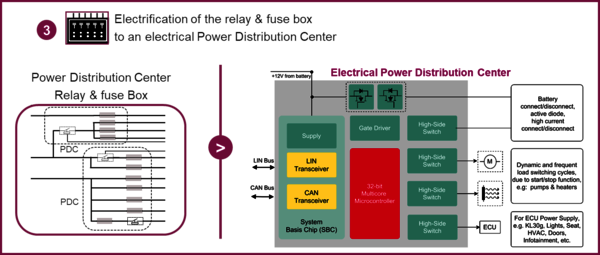

The relay and fuse box is electrified as an electrical power distribution center (ePDC)
Featured Products
|
Product name |
Rutronik24 |
Datasheets |
|
SPOC™ +2 BTS72220-4ESA |
||
|
SPOC™ +2 BTS71033-6ESA |
||
|
PROFET™ +2 12V BTS7008-2EPA |
||
|
PROFET™ +2 12V BTS7040-2EPA |
||
|
PROFET™ +2 12V BTS7004-1EPZ (Grade 0) |
||
|
PROFET™ +2 12V BTS7006-1EPZ (Grade 0) |
||
|
PROFET™ +2 BTS70012-1ESP (Capacitive load switching) |
||
|
Power PROFET™ BTS50025-1TEA |
||
|
AUIR3241S |
||
|
AUIR3242S |
