What is an Intel® NUC?
Next Unit of Computing (NUC) is a Small-Form-Factor-PC introduced by Intel® in 2012.
With the introduction in 2012 driven by a Sandy Bridge processor the Intel® NUCs evolved constantly with the market and comes now with an Core i7 of the 8th generation (Coffee Lake). With the possibility to offer the latest technologies, the Intel® NUC is always a good choice when you keep an eye on the performance / cost ratio. With a versatile product portfolio the Intel® NUC has many advantages that are waiting to be challenged.
Get your Intel® NUC exactly the way you need it. Choose from ready-to-run Intel® NUC mini PCs, barebones Intel® NUC kits for building your own, and Intel® NUC boards for custom applications.

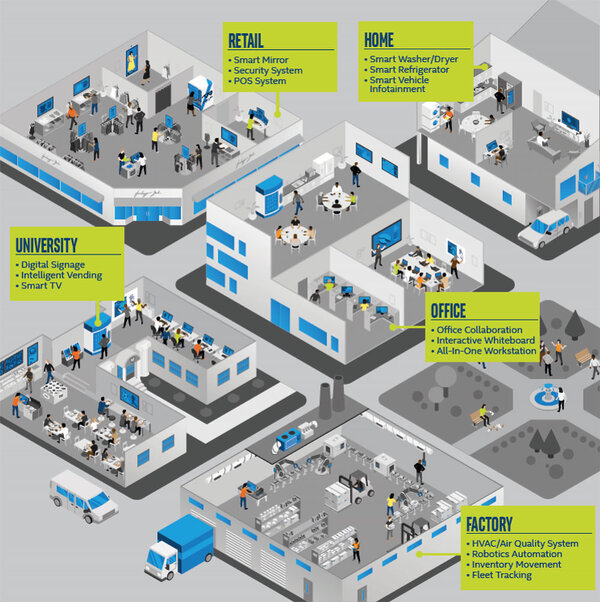

Cover a Wide Field of Applications
The Intel® NUC products can be used in a wide field of applications. Whether used for retail or in the industry the Intel® NUC offers great possibilities to meet challenges.
Key Advantages
Intel® Consumer NUC Mini PC Product Lineup
Intel® NUC Product Catalog January 2020
Intel® Rutronik MiniPC Brochure
Intel® NUC Kits, Boards & Mini PCs
Ultra Small Form Factor | Space Saving | Versatile Usage | Performance | Stunning Visuals | Low Power Usage

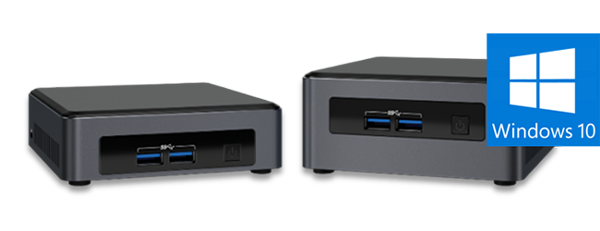

Intel® NUC Mini PC – Ready to go
Intel® NUC Mini PCs with Windows* 10 are fully complete and ready to work out of the box. Optimized and tuned by Intel, you have peace of mind with a 3-year warranty and world-class Intel customer support.

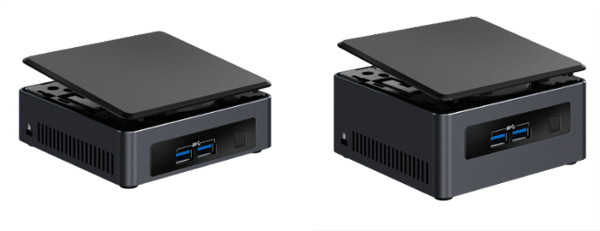

Intel® NUC Kits – Your Choice, your Performance
The Intel® NUC kit features a customizable board and chassis that are ready to accept a wide variety of memory, storage, and operating systems. With the ability to set up a M.2 SSD, like the Intel® Optane™ and up to 32GB DDR4 RAM you can increase performance easily.
If you are interested in a customized NUC solution please contact us.

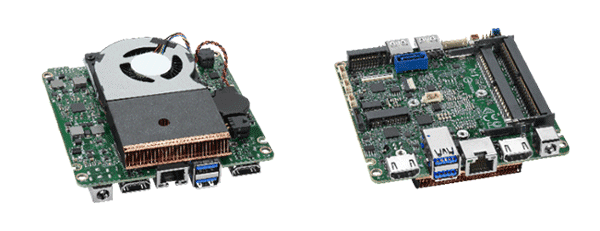

Intel® NUC Boards – Flexibility and Expandability
Four-by-four inch Intel® NUC boards come with a soldered-on processor. Boards can be purchased independently off the kit, providing a mini PC that's fully customizable, scalable, and configurable for a wide variety of solutions.
Here you can find fitting M.2 PCIe SSD, M.2 SATA SSD, Intel® Optane™, SATA SSD and also Memory for you demand and application. Please check the specific datasheet to find a fitting Memory Module. Not sure what to select? Get in touch with us here.
Intel® NUC Elements - Simple, Flexible, Powerful, Small
The surprisingly compact and powerful Intel® NUC 8 Compute Element along with a series of Intel-designed components, deliver the flexibility of modular computing and let you create custom, modular solutions to fit your clients’ exact needs.

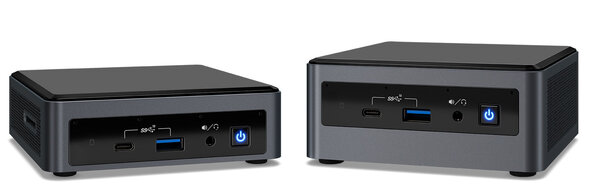

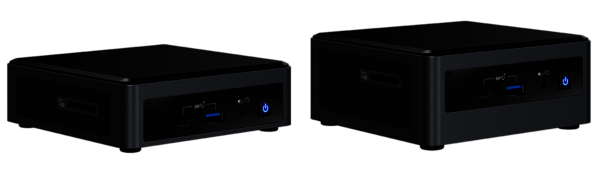

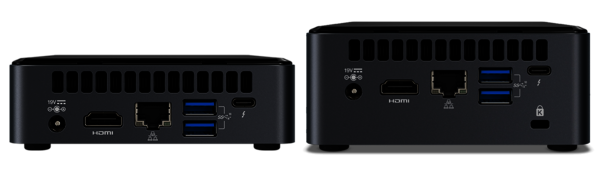

Frost Canyon (Available as Mini PC and Kit)
This Mini PC brings full-size PC performance at a size small enough to fit in the palm of your hand. Available with a choice of hard drive configurations to meet your speed and storage needs, the NUC 10 Performance has the ports to connect every last peripheral and keep your data moving at top speed. And with triple display support, you can multitask across multiple screens and give your brilliance room to spread out.
Features
- 10th generation Intel® Core™ processors
- HDMI* 2.0
- Thunderbolt™ 3
- Support for three 4K displays
- Four USB 3.1 ports
- Intel® WiFi 6
- Bluetooth
- Intel® Gigabit LAN
- SDXC slot with UHS-II support
Target Applications
- Home theater
- Home office productivity
- Casual gaming

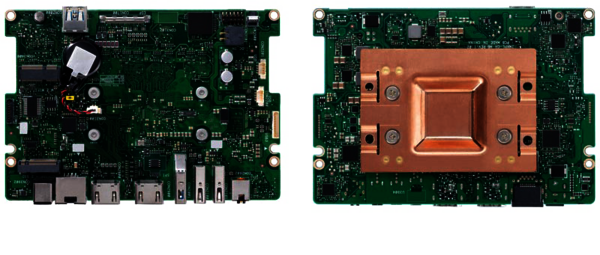

Chaco Canyon (Available as Kit, Board)
The latest NUC from Intel runs passive cooled and comes pre-equipped with 4GB of RAM and 64GB eMMC Storage. With these features, time to market can be reduced to a minimum and enable your productivity from the beginning.
Features
- Intel® Celeron® Processor N3350 with Intel® HD Graphics 500
- 4GB RAM and 64GB eMMC Storage soldered down
- 1x M.2, NVMe or SATA3
Peripheral Connectivity
- 1Gbit Ethernet
- 2x USB 3.0, 2x USB 2.0, 1x internal USB 3.0 header, 1x USB 2.0 header
- Internal 4-lane eDP connector, 1x RS232 serial port header
- 2x HDMI
Target Applications
- Digital signage
- Hospitals
- IoT
- Operator consols in manufacuring environments
- Quick service restaureants
- Edge analytics
- Medical clinics for mobile pedestal computing

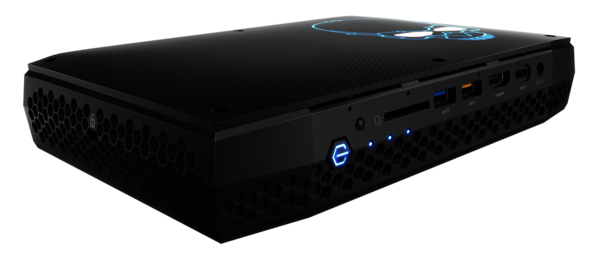

Hades Canyon (Available as Kit and Mini PC)
The Hades Canyon delivers extreme performance on an extreme compact size (8.7 x 5.6 x 1.54 inches). The Intel® spearhead NUC comes with an unlocked 8th generation Core™ i7 processor that offers great experience when it comes to gaming, video editing or even Virtual Reality applications. In other words, when maximum performance is needed, Hades Canyon is your choice.
Features
- 8th generation Intel® Core™ i7-8805G / Core i7-8809G with Radeon RX Vega M GL graphics / Radeon RX Vega M GH
- Up to 32GB DDR4 Memory
- Two M.2 Slots or SATA3 SSDs
Target Application
- Workstation
- Virtual Reality applications

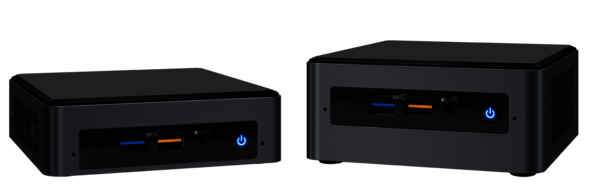

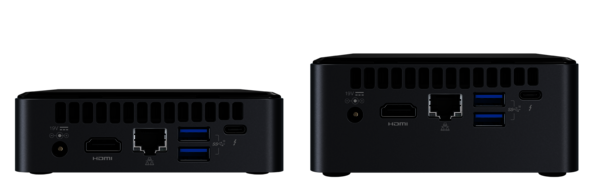

Bean Canyon (Available as Kit and Mini PC)
The first NUC from Intel® with an 8th generation Core™ processor provides 4K UHD graphics. Ready for Intel® Optane™ memory it improves performance dramatically. Available in two different sized cases.
Features
- 8th generation Intel® Core™ i3-8109U with Intel® Iris™ Plus Graphics 655
- Up to 32GB DDR4 RAM
- One M.2 Slot, (SATA3 port only NUC8i3BEH) Intel® Optane™ Memory Ready
- Thunderbolt 3
Target Applications
- Digital Signage / Intelligent vending / Digital Kiosk

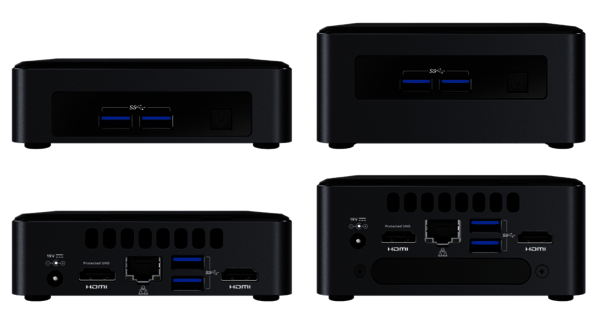

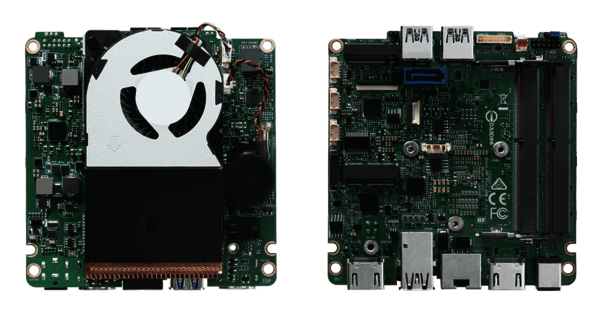

Dawson Canyon (Available as Kit, Mini PC and Board)
Equipped with an Intel® processor of the 7th generation the Dawson Canyon family provides enough power to handle your application. Flagged as "Embedded", this NUC covers a wide range of applications such as digital signage, intelligent vending, surveillance, automation and with the board it can challenge even small space applications.
Features
- 7th generation Intel® Core™ i3-7100U / i5-7300U / i7-8650U with Intel UHD Graphics 620
- Up to 32GB DDR4 Memory
- Two M.2 Slots one SATA3 port (depends on Version), Intel® Optane™ memory ready
Target Applications
- Digital signage / Intelligent vending / Digital Kiosk
- Automation
- Surveillance

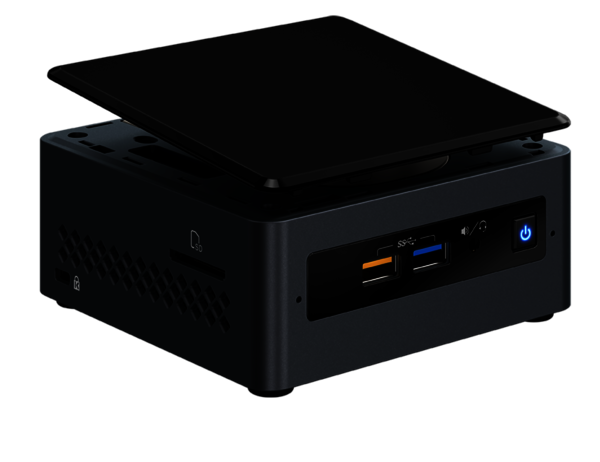

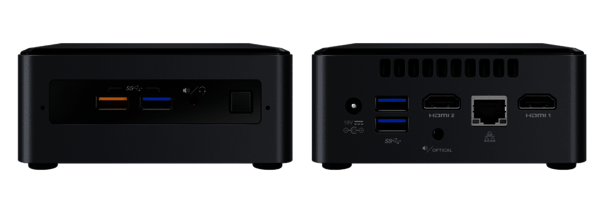

June Canyon (Kit, Mini PC)
Available with an Intel® Celeron® or Pentium® processor the June Canyon family is ideal for cost-conscious users who want basic functionality in a small package.
Features
- Intel® Celeron® J4005 / Intel® Pentium® J5005 processor with Intel® HD Graphics 605
- Up to 8GB DDR4 Memory
- 32GB on-board eMMC (depends on Version)
- One SATA 3 port
Target Applications
- Digital Signage / Intelligent vending / Digital Kiosk - Entry Level

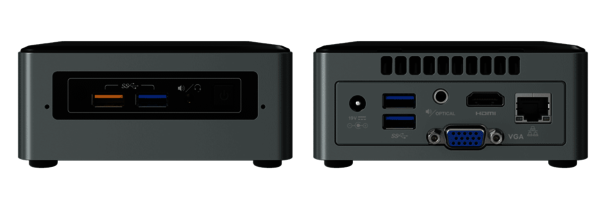

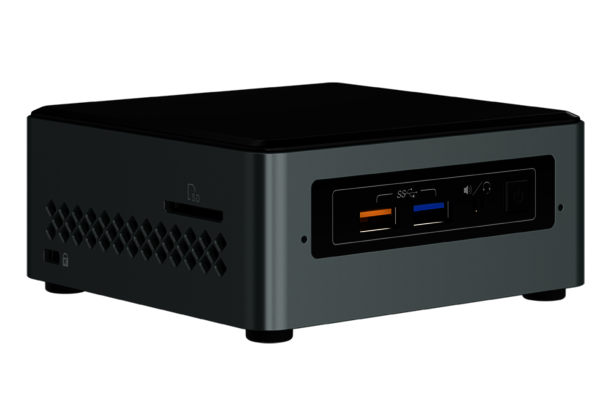

Arches Canyon (Available as Kit and Mini PC)
Unlock sales and your customers imagination up to 4K with the Intel® Arch Canyon.
Features
- Intel® Celeron® J3455 with Intel® HD Graphics
- Up to 8GB DDR3L RAM
- One SATA3 port
- HDMI 2.0 and VGA Port
- Combo speaker / TOSLINK optical audio jack
Target Applications
- Digital Signage / Intelligent vending / Digital Kiosk

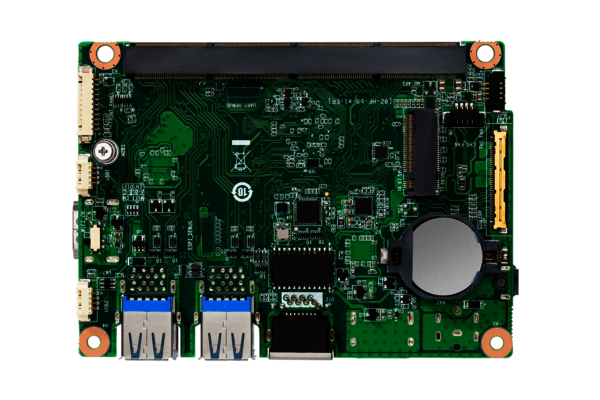

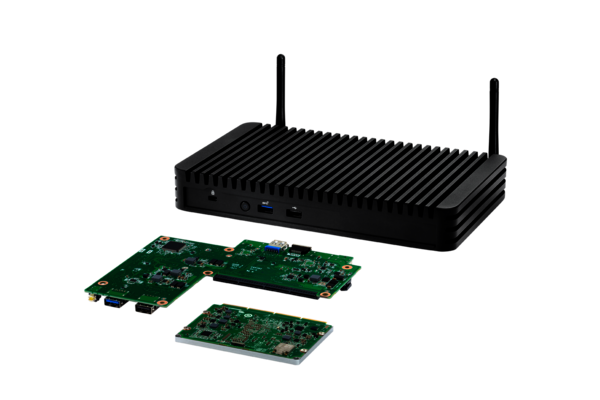

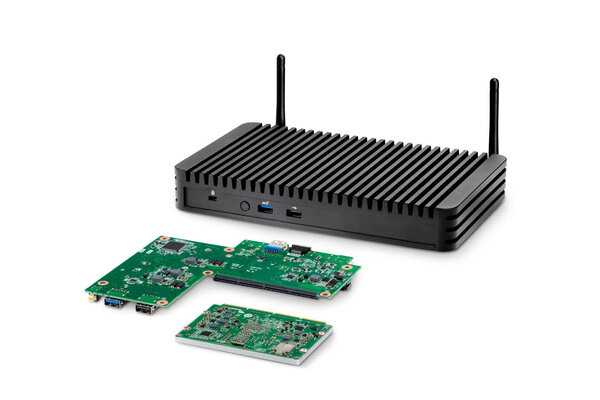

NUC Elements (Available as Compute Elements, Board Elements and and Chasis Elements)
Intel® NUC Elements are an entirely new way to design and build embedded solutions and Mini PCs. The Intel® NUC Compute Element along with a series of Intel®-designed components, deliver the flexibility of modular computing. Intel® NUC Elements let you create the exact systems your clients want. Intel® NUC Elements include the Intel® Compute Element, Intel® Board Element, and Intel® Chassis Element, allowing you to develop innovative solutions that can be deployed as embedded devices or full systems.
Start with an Intel® NUC Compute Element with the exact processor you need and plug it into an Intel® NUC Board Element or a third-party board, then embed it into your solution or drop it into an Intel® NUC Chassis Element or a third-party chassis. By transforming how systems can be built and serviced, Intel® is once again revolutionizing computing in order to help you succeed. From embedded deployments to rugged systems in unique environments, to full systems in a business or vertical environment, the Intel® NUC Elements let you deliver custom solutions with minimal R&D time.
Family Features
- Intel® Wireless-AC 9560 soldered-down, 802.11ac 2x2 1.73 Mbps + Bluetooth® 5
- 4 to 8 GB soldered-down, dual-channel Memory
- Select SKUs with 64 GB eMMC Storage
- Windows 10 & Linux operat ing systems supported
- I/0 supported by the card-edge consolidated connector:
- 4x USB 3.1
- 3x USB 2.0
- 2x DDI (configurable as DP/HDMI)
- 1x eDP
- 1x GbE PHY
- 1x PCIe x4/SATA
- 1x PCle x4
- 1x PCle x1
- 1x HD Audio
- eSPI (EC interface)
