SSDs with 3D NAND Technology for Demanding Applications

Real industrial 3D NAND SSDs for high endurance and performance.
Swissbit’s Industrial grade SSDs are designed for high sustained performance and maximized endurance. The 3D NAND products support real industrial temperature grade from -40˚C to +85˚C with a cross temperature range of 125K.

Typical Application

Industrial PC
Data logging
Surveillance
Automation
Medical systems

Features

3D NAND up to 1920 GB density
temperature range up to -40˚C to +85˚C
High IOPS without power fail compromise
Robust and rugged design
Extended S.M.A.R.T. values and tools (API)
Data Care Management / NCQ / TRIM
Thermal control
AES 256 bit encryption
End to end data path protection

Benefit

3D NAND based SSDs offer high cost improvements versus 2D NAND solutions.

Swissbit X-75 SSDs combine the cost reduction of 3D NAND with full industrial product features. Customers experience a 2D NAND-like endurance and performance with the benefits of 3D NAND.

In addition new features as End-to-End data path protection, AES 256 encryption, block RAID, and thermal management offer additional security and protection.

The X-73 is further optimized to give the user the best price/performance ratio.

What Makes This Supplier Unique?

Swissbit:

Own factory and 25 years of experience
Dedicated to industrial strength products
Best NAND Flash and highest product quality
Industrial temperature support
Swissbit Lifetime Monitor tool
Frozen BOM (Bill of material) and firmware revision
Longterm availability
IATF 16949 certification

More about Swissbit

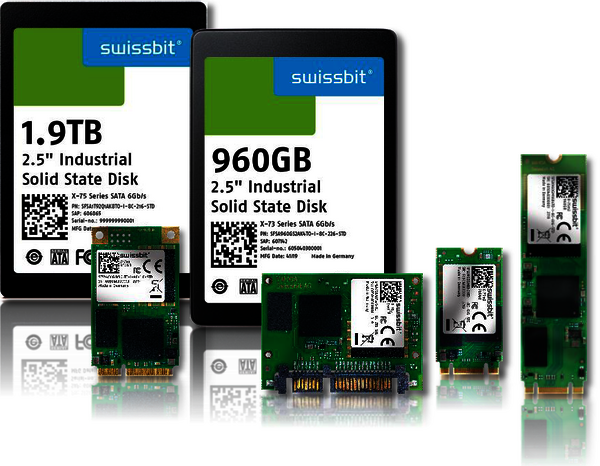

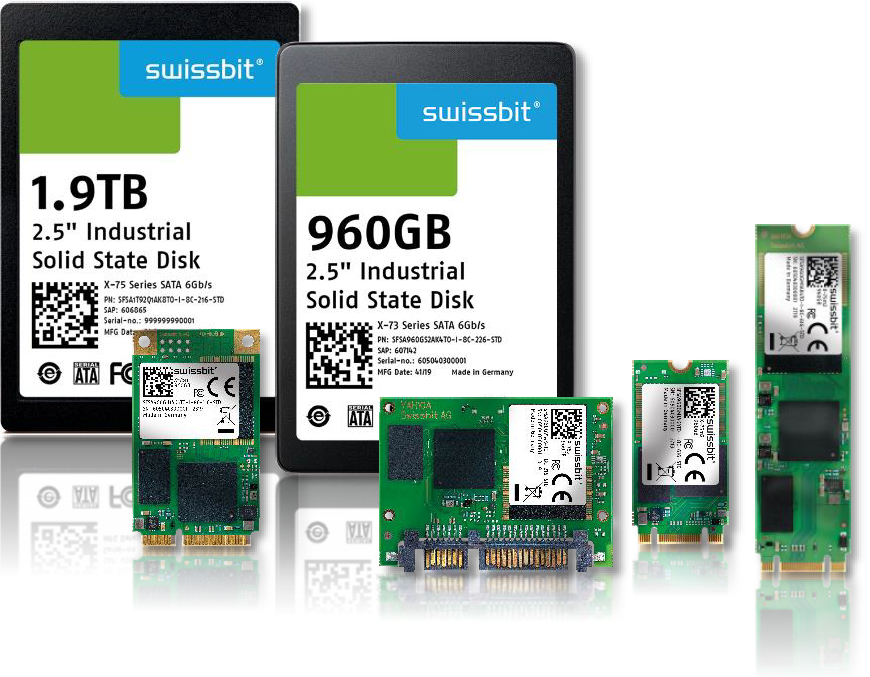

Swissbit 3D NAND SSD Range

X-73 Series

Cost optimized industrial SATA 6GB/s SSD 2.5”
3D NAND with full industrial temperature range
60 –960GB

Download Fact Sheet

See X-73 in Shop

X-75 Series

Robust and rugged industrial SATA 6GB/s SSD 2.5”
3D NAND with full industrial temperature range
For all demanding applications
60 –960GB, 1920GB coming soon

Download Fact Sheet

See X-75 in Shop

X-75m2 Series

Small form factor industrial SATA 6GB/s SSD
3D NAND with full industrial temperature range
M.2 module with 2242 and 2280 size
2242: 60 – 480GB / 2280: 60 - 960GB
