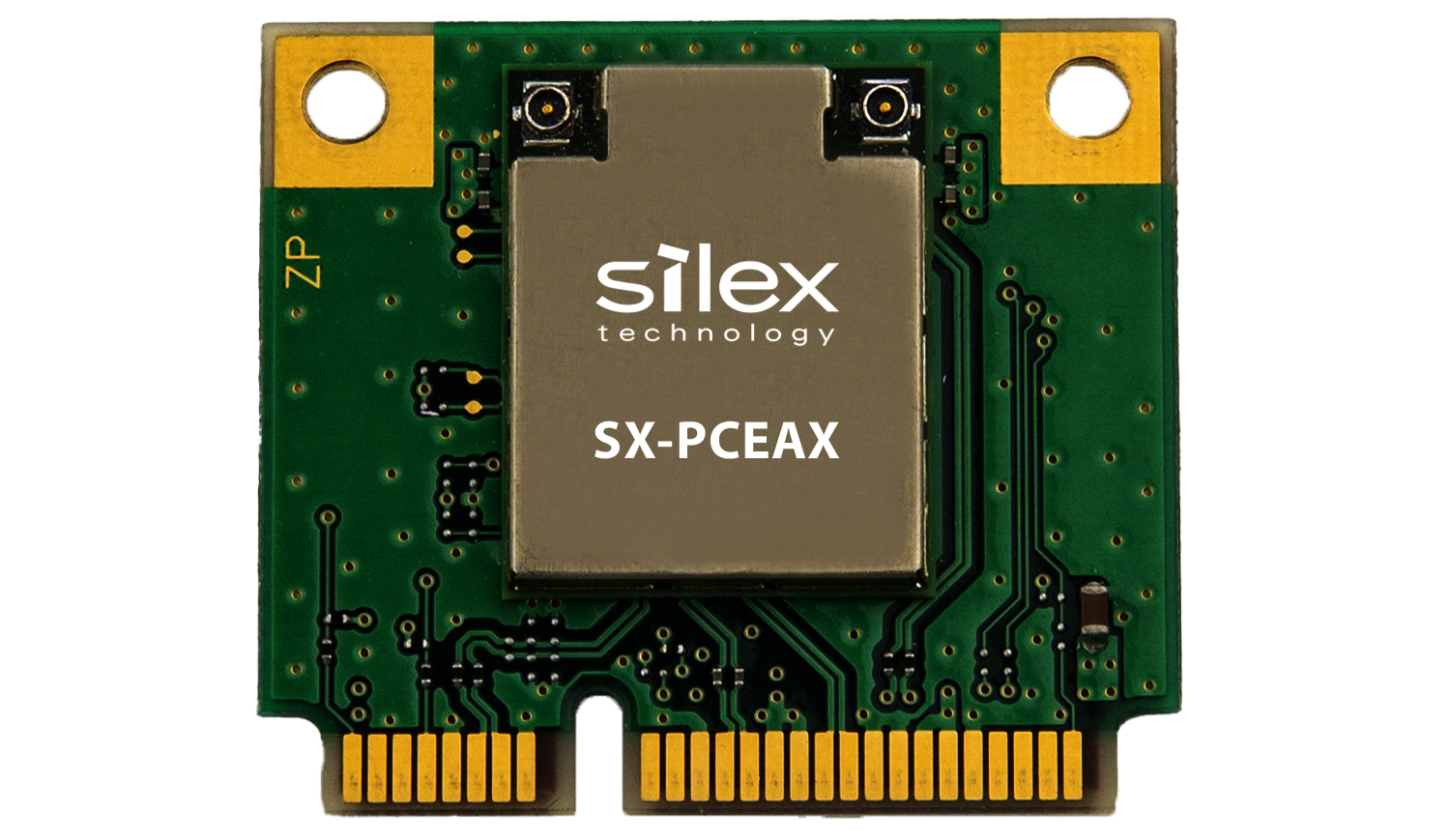

Silex SX-PCEAX

For faster, more reliable WLAN for demanding, mission-critical applications: To increase overall capacity and performance, the Silex SX-PCEAX Tri-Band Wi-Fi 6E 2x2 PCIe module has been equipped with the 6 GHz band in addition to the 2.4 and 5 GHz bands. This makes the module, based on the Qualcomm SoC QCA2066, one of the first Wi-Fi 6E modules. In addition to the tri-band IEEE 802.11 a/b/g/n/ac/ax WLAN, it supports also the Bluetooth 5.2 BR/EDR/LE standard. The SX-PCEAX is ideally suited for use in medical applications, especially in the field of diagnostic imaging, warehouse/logistics applications such as self-propelled industrial trucks or intelligent production lines, as well as for use in industrial environments (industrial PCs) and industrial automation.

To meet the space requirements of the diverse applications, Silex realized the module in several sizes and form factors. The PCI Express card form factor, for example, is suitable for the migration of 802.11ax into existing legacy PCIe solutions. The SMD option of the M.2 LGA type 1418 is convincing due to its minimal space requirement. An M.2 plug-in card in M.2 2230 format is also available.
