Best Price-Performance MOSFETs for Consumer and Lighting Applications

Infineon’s CoolMOS™ CE offers ease-of-use and cost-competitive advantages, and at the same time still delivers state-of-the-art performance.

CoolMOS™ CE is determined to support customers’ success in various consumer markets by full FAE (field application engineer) support, short lead time and fast quote response


CoolMOS™ CE at a Glance

  • Suitable for hard and soft switching applications

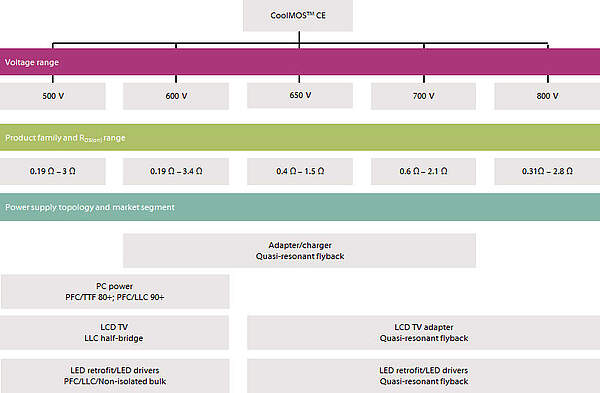

  • Available in five voltage classes (500 V/600 V/650 V/700V/800 V) and more than 10 packages
  • Offers proven CoolMOS™ quality and reliability while still being price attractive

Applications

  • CoolMOS™ has been widely chosen by leading OEMs (original equipment manufacturers) in their adapter application.
  • CoolMOS™ CE offers a wide range of products for the TV SMPS application and has been selected by worldwide leading TV manufactures due to its high quality, reliability, ease-of-use and Infineon dedicated FAE support.
  • The wide usage of 700 V CoolMOS™ CE by leading charger OEMs and design houses in their charger applications demonstrates Infineon's technology know-how and commitment to this segment.

CoolMOS™ CE not only helps to support a green world through saving energy, but it also makes the world colorful by powering LED drivers.

Infineon offers a wide range of reference boards covering output power from 18 W up to 110 W, which fulfill market requirements and help customers speed up the time-to-market.

Lighting

  • CoolMOS™ CE SOT-223 products are offered in four voltage classes. 500 V, 600 V, 650 V, and 700 V.

RDS(on)[mΩ]

500 V

600 V

650 V

700 V

650

IPN50R650CE



800

IPN50R800CE



950/1000

IPN50R950CE

IPN60R1K0CE



1400/1500

IPN50R1K4CE

IPN60R1K5CE

IPN65R1K5CE

IPN70R1K5CE

2000/2100

IPN50R2K0CE

IPN60R2K1CE



3000

IPN50R3K0CE



3400



IPN60R3K4CE



CoolMOS™ CE SOT-223 products have been optimized to fully address SMPS low power, especially lighting applications. The SOT-223 package has a similar footprint as the DPAK, thus one-on-one DPAK replacement by SOT-223 is possible. This leads to customer cost savings. In addition, the customer could also use the SOT-223 to save space, increasing power density as a consequence.

Find out how to use a high voltage CoolMOS™ CE device in a SOT-223 package

Demo Boards

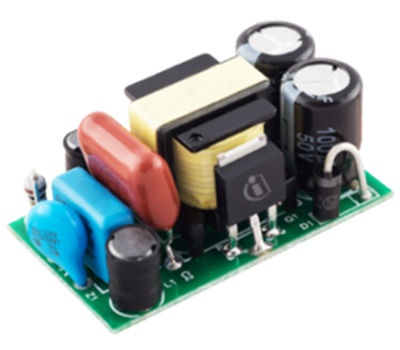

CoolMOS™ CE 18 W demo board with ICL8201

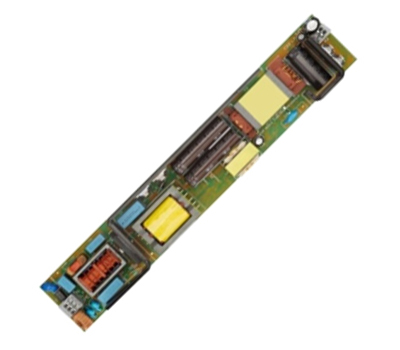

CoolMOS™ CE 110 W demo board with ICL5101

One-On One Drop-in Replacement for DPAK at Lower Cost

DPAK

SOT-223
