Highly Efficient LED Lighting Solutions from Infineon
Infineon's semiconductors are perfectly suitable for LED lighting applications. Highly reliable devices are extending the lifetime of your lighting system, and leading technologies such as CoolMOS™ Power MOSFETs, AC-DC LED controllers and digital power solution such as XDP™ LED allow a highly efficient power conversion. Infineon has the perfect offerings for easy-to-design-in, flexible LED lighting solutions to power and control LEDs at high efficiency.

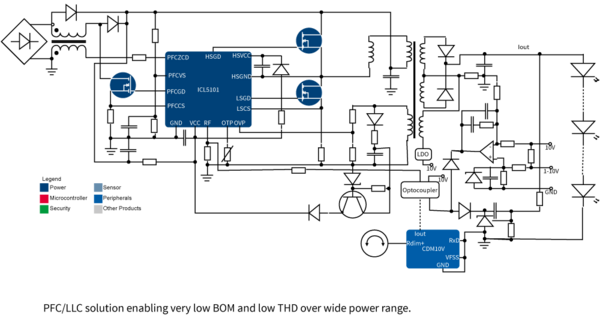

Single String > 100 W
PFC + LLC stage - Constant Current (CC)
For single-color topologies operating above 100 W, ICL5101 is the recommended AC-DC PFC LED controller - the perfect fit, especially when incorporated with the innovative CDM10V dimming IC. The controller delivers high efficiency (94%), high power factor (0.95) and low harmonic distortion (<10%) through the entire load range with a full functionality and guaranteed smooth transitions between operating modes. 600V CoolMOS™ CE for the use in the PFC stage and 600V CoolMOS™ P7 for LLC stage are complementing your price-performance optimized LED design.
ICL5101
The ICL5101 is a great fit for single stage topologies >100W as well as multi-string topologies, especially when combined with the innovative CDM10V dimming IC. The controller delivers high efficiency (94%), high power factor (0.95) and low harmonic distortion (<10%) through the entire load range with a full functionality and guaranteed smooth transitions between operating modes.
CDM10V
Cost-optimized Isolated 0-10 V Dimming IC
The compact and highly integrated CDM10V dimming interface IC allows designers to replace many of the discrete components used in conventional 0-10 V dimming schemes with a single device. Analog 0-10 V to digital PWM converter for dimming, Infineon's CDM10V, is the industry's first single-chip lighting interface IC dedicated for lighting applications capable of transforming an analog 0-10V input into a PWM or dimming input signal required by a lighting controller IC.

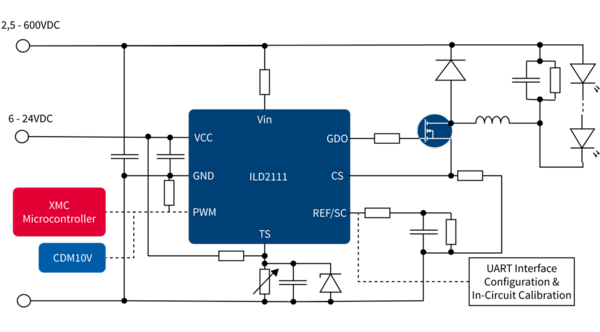

DC/DC Buck (CC) for Non-SELV Applications
For the secondary Buck Side, Infineon is offering with its XDP LED™ ILD2111, together with the .dp Vision GUI, a quick and easy digital power solution shortening development cycles and giving more flexibility.
ILD2111
The ILD2111 is a high-performance configurable buck controller, designed as a constant current source with an average output current regulation. The IC supports output current setting at the end user with a simple resistor (Led-set like). Important parameters such as target current and protection features can be configured by a dedicated single pin UART interface. The ILD2111 buck controller is dimmable by an external PWM signal.
Single String < 100 W

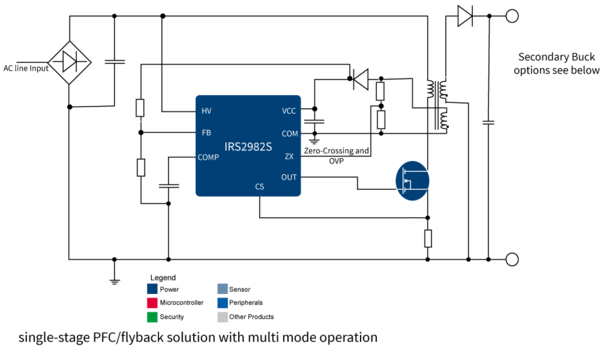

PFC/FB stage - Constant Voltage (CV) + Secondary Buck
Infineon offers analog and digital solutions for the AC-DC LED control. Analog solutions include the IRS2982S analog flyback controller IC and the 800 V CoolMOS™ P7, which make the perfect fit for single string topologies <100W. For digital solutions, the XDP™ LED XDPL8105 digital flyback controller IC is recommended, while the CDM10V is perfect for easy and flexible implementation of dimming functionalities. 650V/700V CoolMOS™ CE and 600V-800V CoolMOS™ P7 are the right power switches for your LED driver.

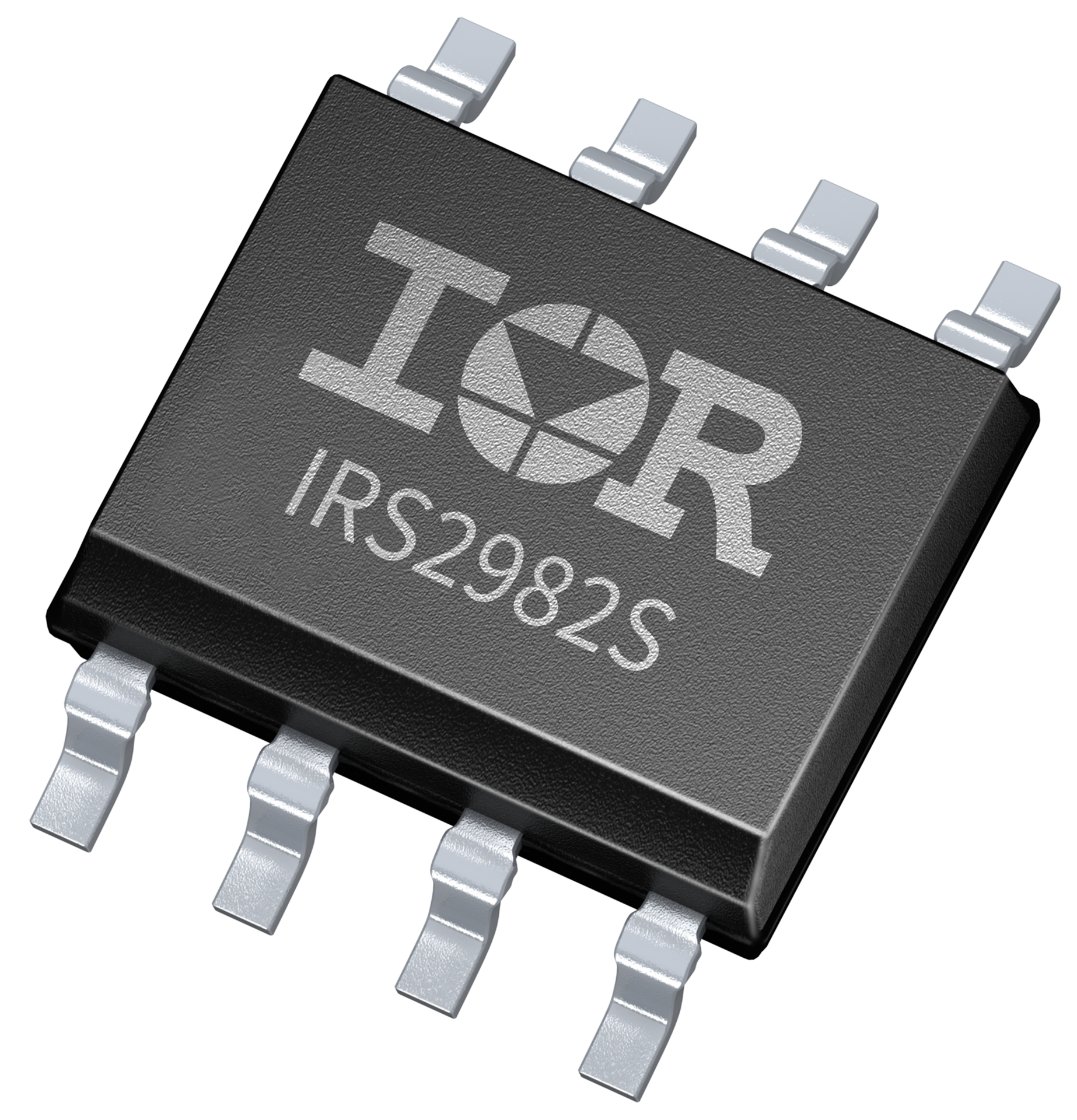

IRS2982S
The IRS2982S is a versatile LED driver IC primarily intended for LED drivers < 100W. It is suitable for buck, buck-boost and flyback converters operating in critical conduction mode (CrCM) and discontinuous mode (DCM) at light loads. The IRS2982S includes control, protection and gate drive circuitry with a high voltage start-up cell to enable rapid power up over a wide line input voltage range. The IRS2982S is also able to provide power factor correction in a single stage flyback converter able to meet class C (lighting) line current harmonic limits of the EN61000-3-2 standard.

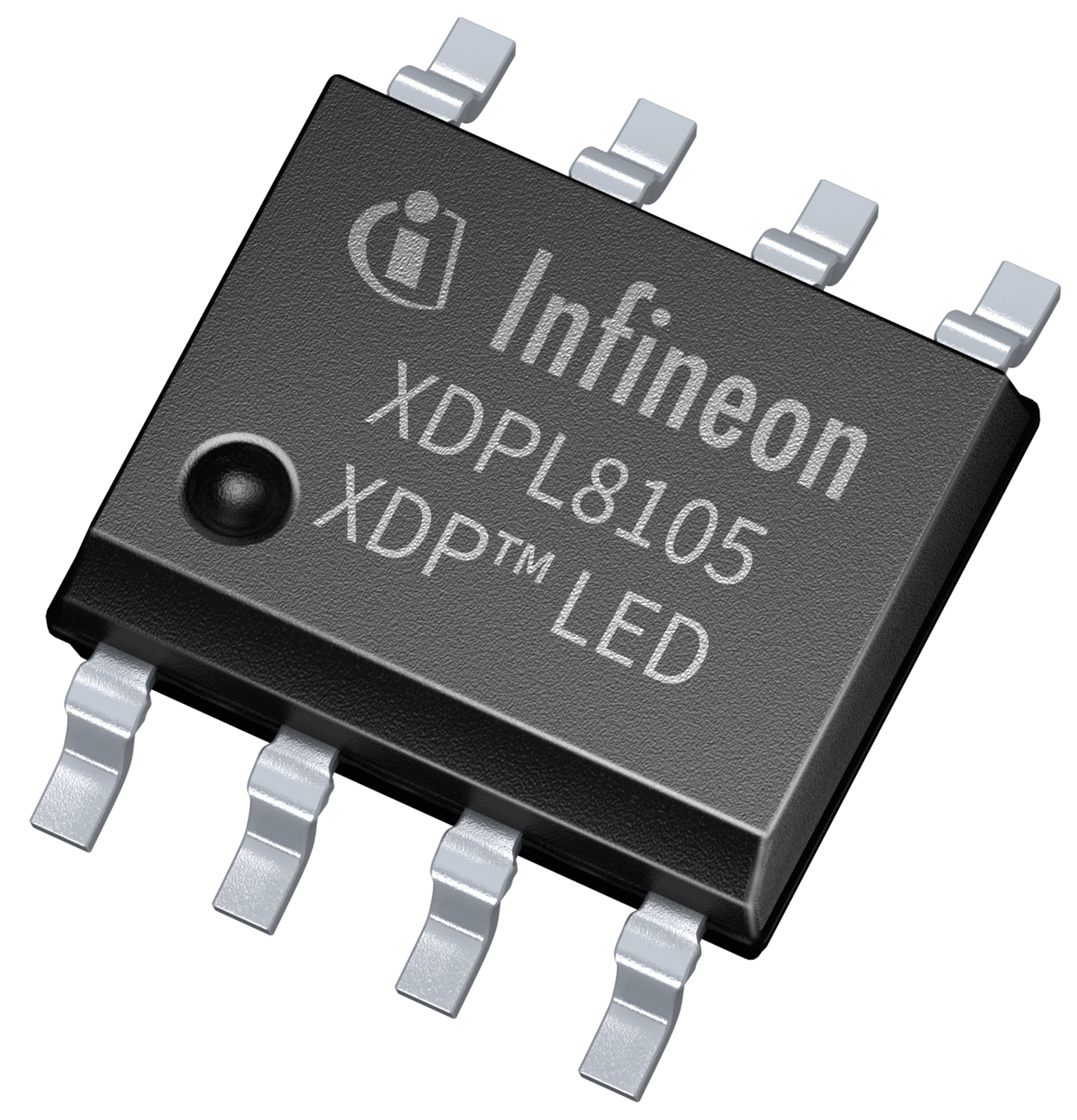

XDPL8105
The XDPL8105 is a high performance microcontroller based digital single-stage flyback controller with power factor correction (PFC) for constant output current LED driver. The IC is available in a DSO-8 package and supports a wide feature set, requiring the minimum of external components. The digital engine offers the possibility to configure operation parameters and protection modes, which helps to ease the design phase and allows a reduced number of hardware variants. Accurate primary side output current regulation is implemented to eliminate the need for secondary side feedback circuitry.

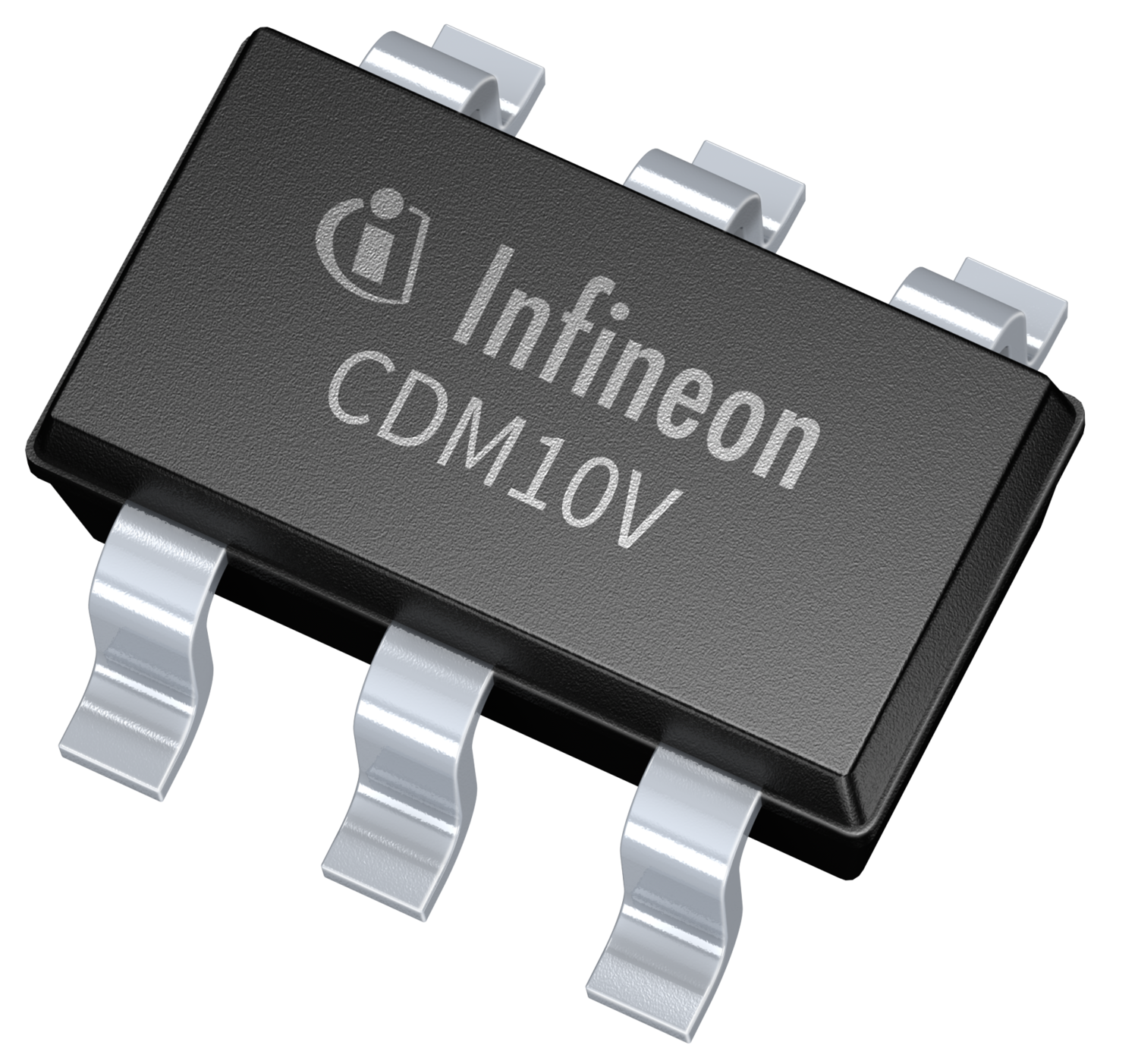

CDM10V
Cost optimized isolated 0-10 V dimming IC
The compact and highly integrated CDM10V dimming interface IC allows designers to replace many of the discrete components used in conventional 0-10 V dimming schemes with a single device.

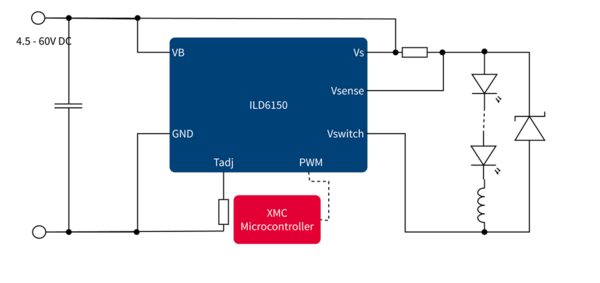

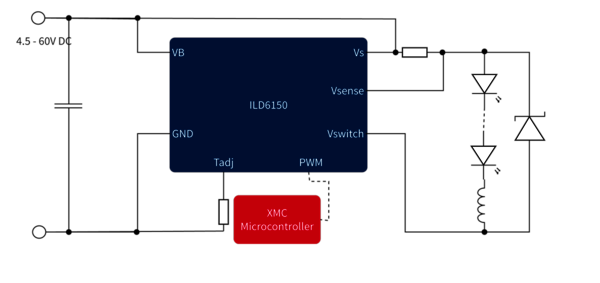

DC/DC Buck for SELV Applications
The ILD6150 driver is a unique step-down buck converter allowing input operation up to the maximum safety electrical low voltage (SELV) of 60 VDC. This digital driver is able to handle a wide range of current up to 1.5 A and works well for one to 18 colored LEDs with little to no change in the number of external components. Efficiencies to 98 percent ensure little power is wasted, while a fast 1 MHZ switching speed minimizes required inductor size. With the integrated MOSFET, this beneficial combination allows easy and simple designs for small form-factor solutions. The ILD6000 series feature an internal (optional) thermal sensor for full integration. As a result, there is no need for an external NTC/PTC device, which saves extra costs.
ILD6150
The ILD6150 switch mode DC-DC LED driver is tailored to drive high power LEDs and LED array, offering flexible dimming options. The ILD6150 is a 60V LED Driver IC for currents up to 1.5A, which means up to 16-18 LED's can be stacked in series. In addition, ILD6150 features integrated advanced thermal protection, and achieves efficiency levels up to 98%. The high efficiency allows to reduce cost on heat sink and spending on LEDs, as more lumen output can be reached, rather than get lost in thermals.

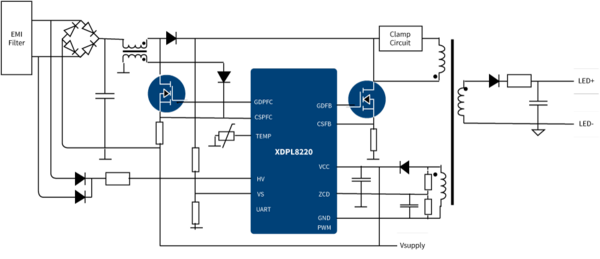

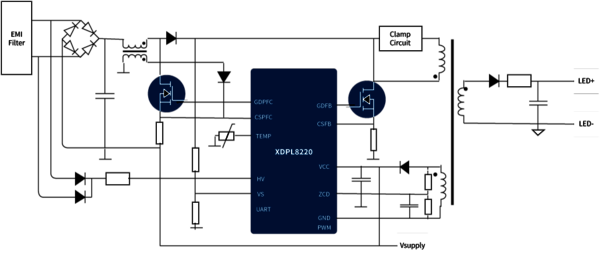

PFC/FB Stage – Constant Current (CC) and Constant Voltage (CV)
The XDP™ LED digital power device, XDPL8220 is a configurable device which increases the flexibility by its ability to address different topologies such as CC or CV. Integration of various features leads to system cost advantage, and the two stage architecture eliminates flicker, for a simpler and more stable control loop. Together with the configurable CDM10V dimming IC a flexible LED Lighting solution can be designed.
XDPL8220
The digital core of the XDPL8220 enables a variety of systems based on the same device. Its advanced control algorithms provide the possibility to realize lighting electronic control gear (ECG) for constant current or constant voltage mode in the same circuit. The power limitation mode keeps the light on while it optimally utilizes the components capabilities. The device is adaptable to the target application, by providing a comprehensive parameter set for adjustment of operating constraints.
Multistring

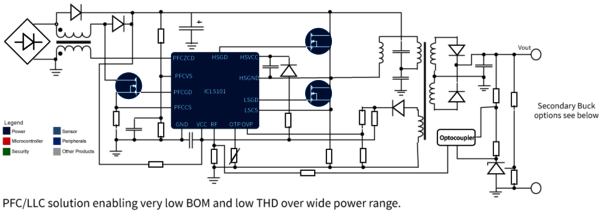

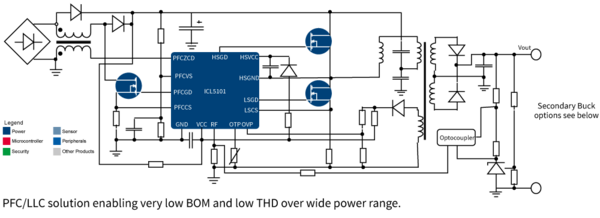

Triple stage: PFC+LLC Constant Voltage (CV) + Secondary Buck
The use of the ICL5101 AC-DC LED Driver IC in combination with 700 V/800 V CoolMOS™ P7 enables a PFC+LLC solution benefiting from a very low BOM and low THD over wide power range.
ICL5101
The ICL5101 is a great fit, especially when combined with the innovative CDM10V dimming IC. The controller delivers high efficiency (94%), high power factor (0.95) and low harmonic distortion (<10%) through the entire load range with a full functionality and guaranteed smooth transitions between operating modes.

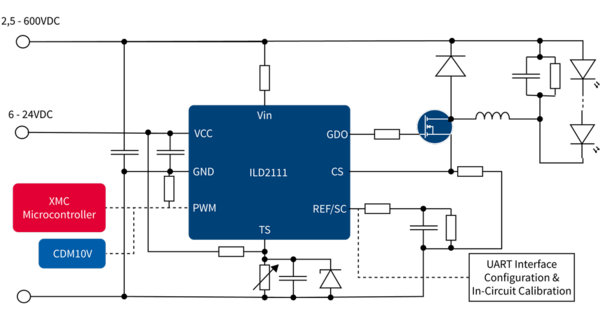

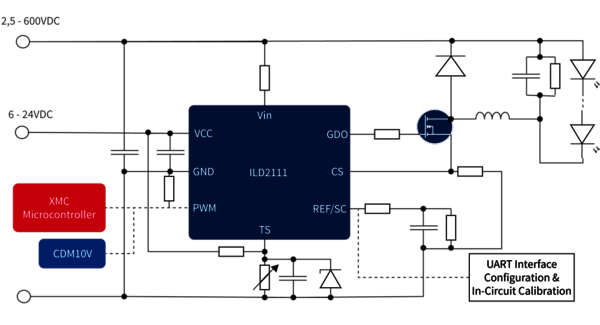

Secondary Buck
While on the secondary side, the XDP™ LED device, ILD2111 in combination with the CDM10V and XMC1300 microcontroller, completes highly efficient conversion, while enabling various features such as temperature protection, brightness, and color control.
ILD2111
The ILD2111 is a high-performance configurable buck controller, designed as a constant current source with an average output current regulation. The IC supports output current setting at the end user with a simple resistor (Led-set like). Important parameters such as target current and protection features can be configured by a dedicated single pin UART interface. The ILD2111 buck controller is dimmable by an external PWM signal.
Tuning in Full Color
One of the XMC™ application-specific features for lighting is a brightness and control unit (BCCU) that simplifies digital LED dimming and eases color control applications. It is specifically designed to automatically control the dimming level and color of multichannel LED lamps, requires little user code, and supports completely flicker-free operation owing to its 12-bit pulse density modulation (PDM) dimming signals. The exponential dimming engine provides automatic gradual brightness change and invisible dimming steps.

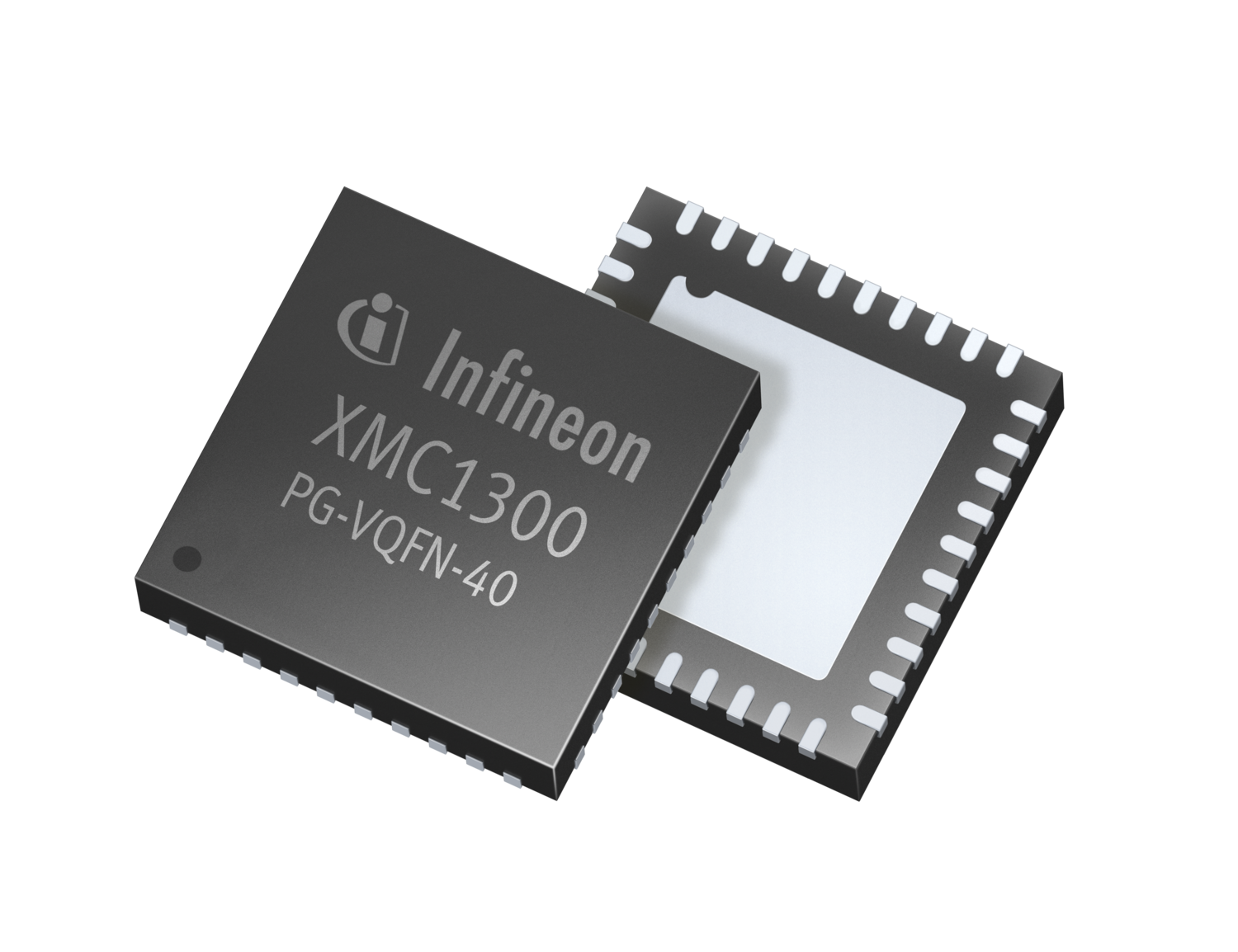

XMC1300
XMC1300 can cover LED color control, DC/DC buck, connectivity e.g. DALI and DMX, sensing and additional housekeeping functions:
- Automatic brightness control (using high-frequency pulse density modulation) enables completely flicker-free dimming even at very low dim levels < 0.1%
- Automatic exponential dimming and linear intensity changes make brightness or color changes appear smooth and natural to the human eye
- Automatic color control using BCCU allows for easy transitions in orthogonal color space (e.g. RGB) and automatic timed transitions independent of lamp brightness

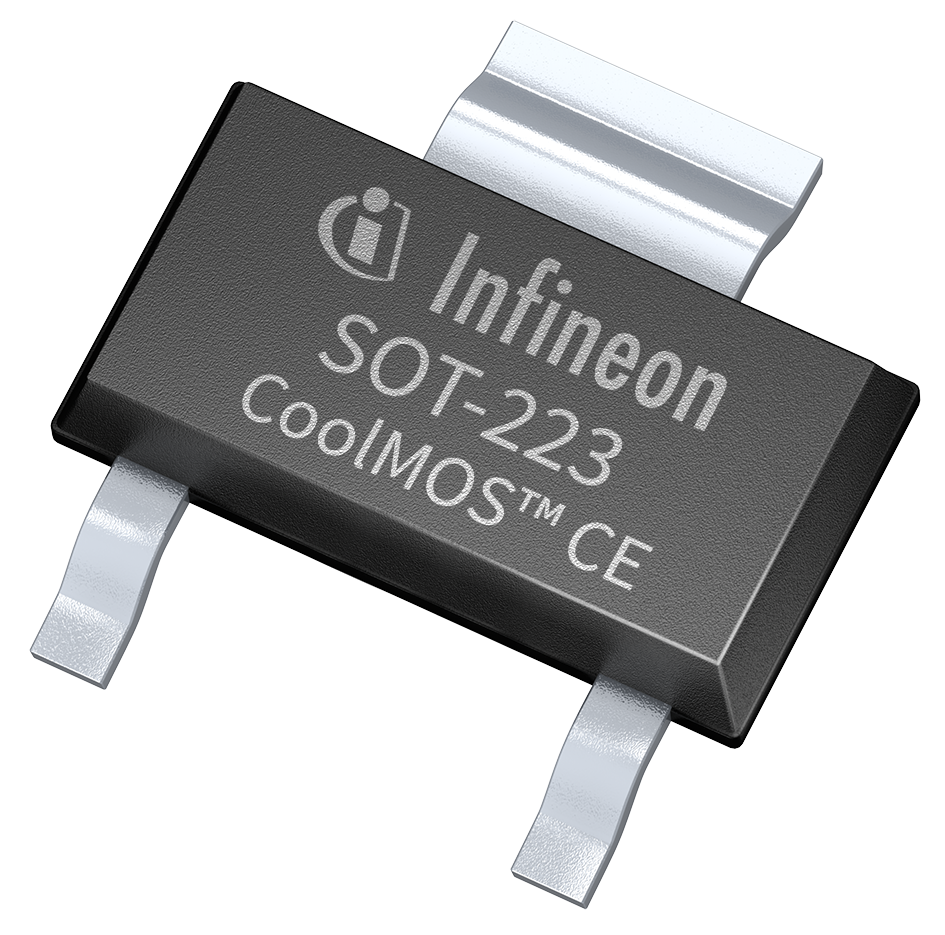

CoolMOS™ CE
Infineon's CoolMOS™ CE series offers benefits in efficiency and thermal behavior compared to standard MOSFETs and has been optimized for ease-of-use and cost competitiveness, while at the same time delivering a state-of-the art performance and Infineon quality and supply security.
(Recommended for RDS(on) < 600mOhm)

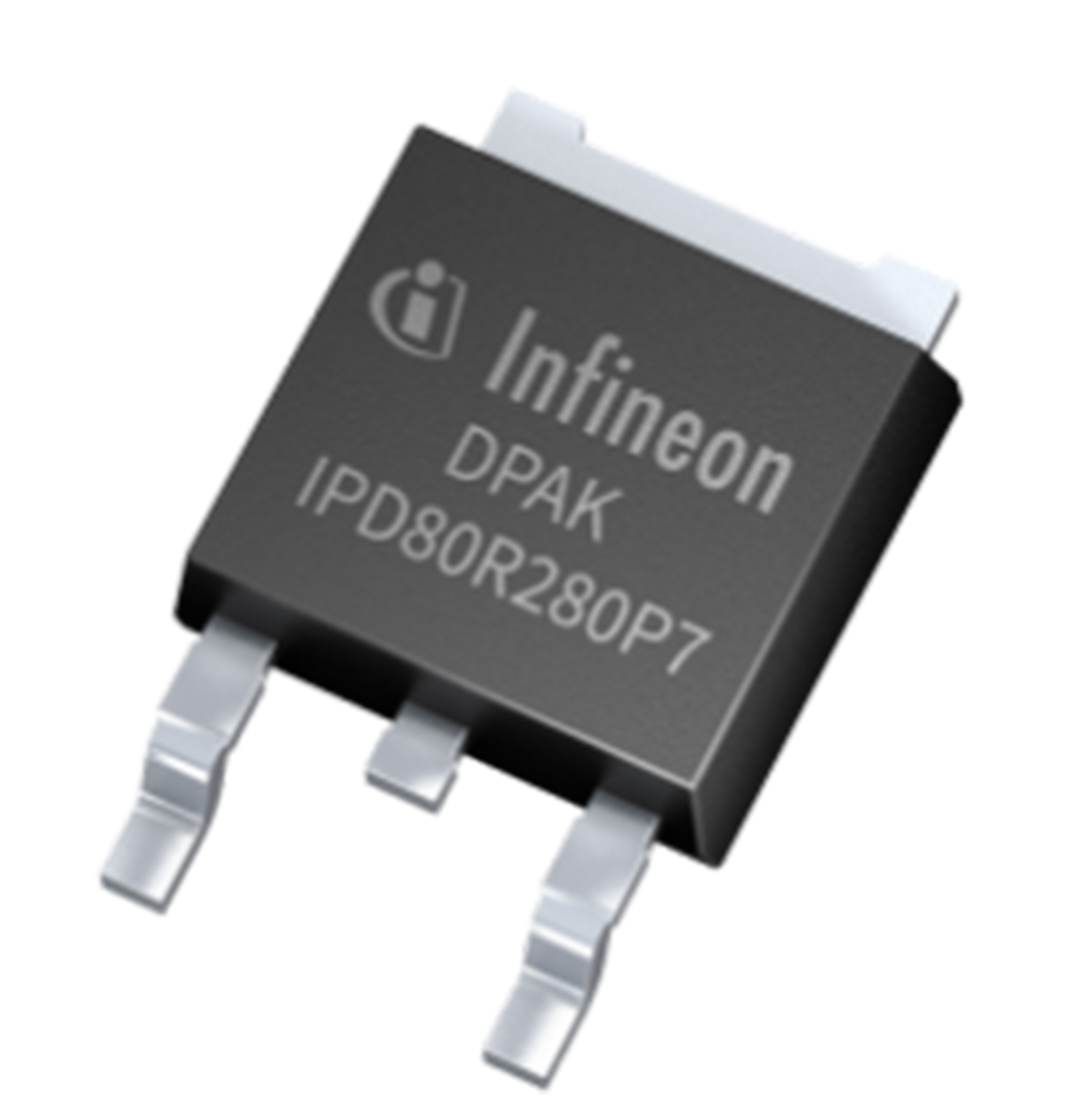

CoolMOS™ P7
High efficiency, excellent ease-of-use, a competitive price, and an outstanding portfolio granularity make CoolMOS™ P7 the most well balanced high voltage MOSFET.
(Recommended for RDS(on) >= 600mOhm)
