Explore the new nRF54L series

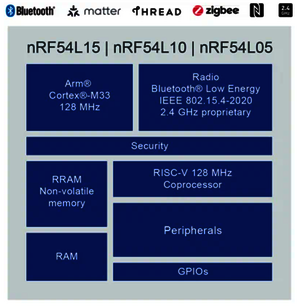

The nRF54L series takes the popular nRF52 series to the next level and is designed for the next generation of Bluetooth LE products. It integrates a new ultra-low power 2.4 GHz radio and multi-purpose MCU functionality, featuring a 128 MHz Arm Cortex-M33 processor, doubling the processing power and tripling the processing efficiency.
The three wireless SoCs in the nRF54L series offer a selection of memory size options, up to 1.5 MB NVM and up to 256 KB RAM, making them suitable for a wide range of Bluetooth LE applications.

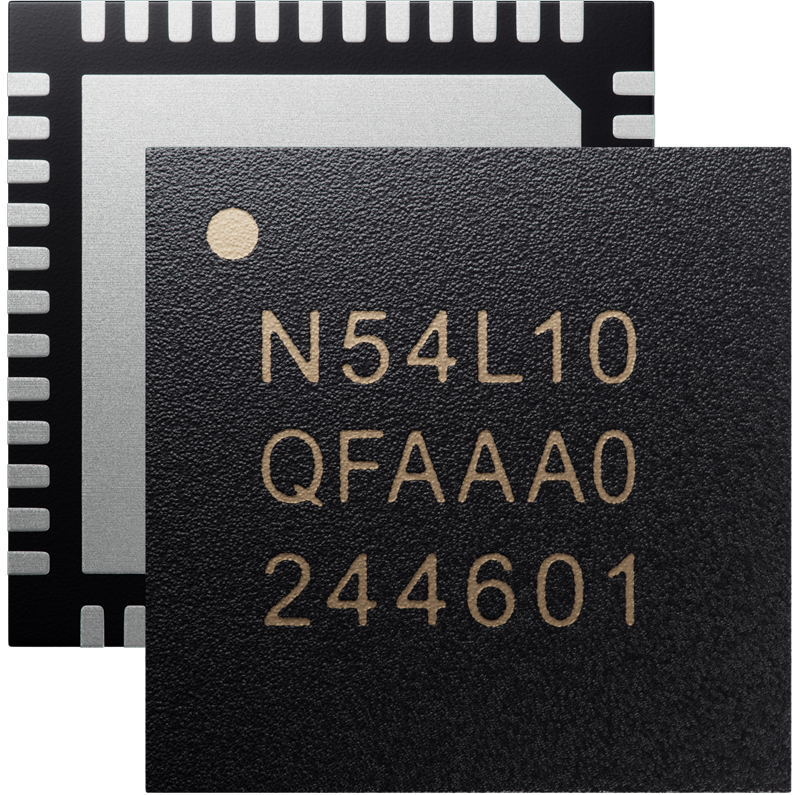

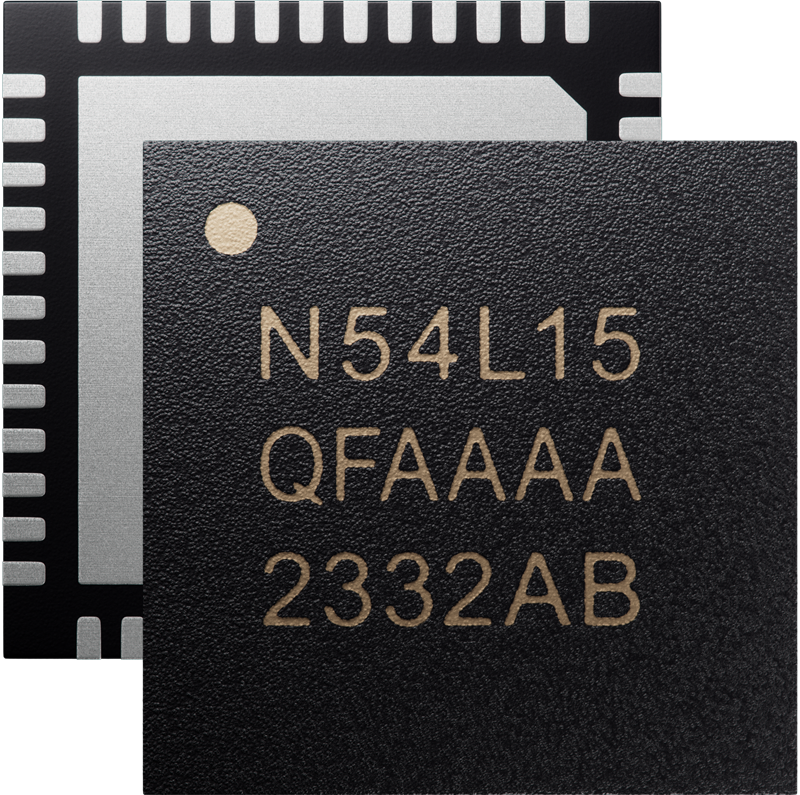

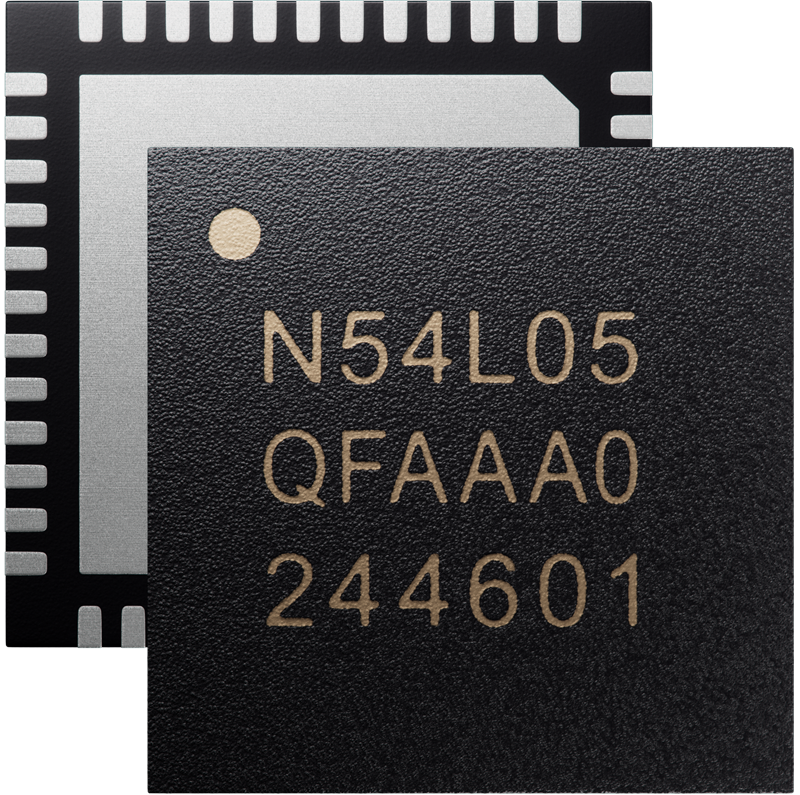

Overview nRF54L Series
|
nRF54L15 |
nRF54L10 |
nRF54L05 |
|
|
|
|
|
|
|
Processor |
128 MHz Arm Cortex-M33 |
128 MHz Arm Cortex-M33 |
128 MHz Arm Cortex-M33 |
|
NVM |
1.5 MB |
1.0 MB |
0.5 MB |
|
RAM |
256 KB |
192 KB |
96 KB |
|
Bluetooth LE version |
6.0 |
6.0 |
6.0 |
|
TX power |
Up to 8 dBm |
Up to 8 dBm |
7 dBm |
|
RX sensitivty (1 Mbps Bluetooth LE) |
-96 dBm |
-96 dBm |
-96 dBm |
|
RX sensitivity (IEEE 802.15.4) |
-101 dBm |
-101 dBm |
-101 dBm |
|
RISC-V coprocessor |
128 MHz FLPR |
128 MHz FLPR |
128 MHz FLPR |
|
ADC |
8ch, up to 14-bit, up to 2 MS/s |
8ch, up to 14-bit, up to 2 MS/s |
8ch, up to 14-bit, up to 2 MS/s |
|
Operating temperature |
-40 to +105 °C |
-40 to +105 °C |
-40 to +105 °C |
|
Sipply and GPIO voltage range |
1.7 to 3.6 V |
1.7 to 3.6 V |
1.7 to 3.6 V |
Starting with the nRF54L series – nRF54L15 Development Kit
The nRF54L15 DK is the development kit for all three wireless SoC (System-on-Chip) options in the nRF54L series. The nRF54L15 sits on the development board, while the nRF54L10 and nRF54L05 can be emulated. The affordable single-board development kit makes all features of the wireless SoC available to the developer.
The nRF54L15 DK is supported by a comprehensive set of nRF connect tools and will have support in nRF Connect SDK v2.8.0 (available since November 14th, 2024). Developers can explore the full potential of the nRF54L15 using the extensive range of software samples, modules, and libraries available within the nRF Connect SDK.
Participate and Win!
Nordic Semiconductor is a global leader of ultra-low-power wireless technologies and a long term partner of Rutronik and is offering you the opportunity to win one of their development hardware. Participate in our advent calendar and explore the world of Power Management, Bluetooth Low Energy, Wi-Fi and Cellular IoT.
The nRF54L15 DK is the development kit for all three wireless SoC (System-on-Chip) options in the nRF54L Series. The nRF54L15 sits on the development board, while the nRF54L10 and nRF54L05 can be emulated. The affordable single-board development kit makes all features of the wireless SoC available to the developer.
The nPM1300 Evaluation Kit allows for simple evaluation and code-free configuration of the nPM1300 Power Management IC (PMIC). By connecting to the nPM PowerUP app found in nRF Connect for Desktop, all settings of the nPM1300 can easily be configured through an intuitive GUI and exported as code to be implemented in your MCUs application.
The nRF7002 DK is the development kit for the nRF7002, and nRF7001 Wi-Fi 6 Companion ICs. It contains everything needed to get started developing on a single board. The DK features an nRF5340 multiprotocol System-on-Chip (SoC) as a host processor for the nRF7002.
The Power Profiler Kit II (PPK2) is a standalone unit, which can measure and optionally supply currents all the way from sub-uA and as high as 1A on all Nordic DKs, in addition to external hardware.
The Nordic Thingy:53™ is an easy-to-use IoT prototyping platform. It makes it possible to create prototypes and proofs-of-concept without building custom hardware. The Thingy:53 is built around the nRF5340 SoC, our flagship dual-core wireless SoC. The processing power and memory size of its dual Arm Cortex-M33 processors enables it to run embedded machine learning (ML) models directly on the device.
The Nordic Thingy:91 X is a battery-operated prototyping platform for cellular IoT based on the nRF9151 System-in-Package (SiP) supporting LTE-M, NB-IoT, GNSS and NR+, and certified for global operation. It is the ideal platform for rapidly developing a prototype for any cellular IoT concept, and is especially suited for asset-tracking applications. Nordic Thingy:91 X enables location tracking using cellular (MCELL and SCELL), Wi-Fi, or GNSS, in combination with nRF Cloud Location Services.
The nRF9151 DK is an affordable, pre-certified single board development kit for evaluation and development on the nRF9151 System-in-Package (SiP) for LTE-M, NB-IoT, GNSS and DECT NR+. It has a dedicated LTE-M, NB-IoT and DECT NR+ antenna that supports a wide range of bands to operate globally.
On top of this you have the chance to win a finder from our customer Chipolo. This product is a lightweight, water-resistant item finder designed to help you find your missing valuable items.
- Chipolo ONE Spot (Apple)
- Chipolo ONE Point (Android)
